Reflection mirror is coating on the optical glass to increase the reflection of the substrate. Coated reflection mirror is superior than normal reflection mirror as the refection of normal reflection mirror is lower and would make ghosting as there is no selection of wavelength.

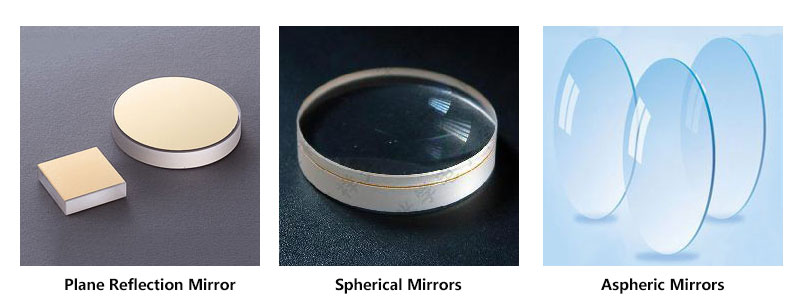

According to different shapes, reflection mirror can be divided into three species:  Plane reflection mirror, spherical mirrors, aspheric mirrors.

What we do is coating on the plat glass that is plan refection mirror.With the different degree of reflection, it can be devided into full relection mirror and half mirror. Half mirror is 50% reflection and 50% transmittance. It is also known as beam splitter.When talking about reflection, there is also a reference of single point reflection and wide band reflection.

Below you could check some  standard reflection mirror we offer:

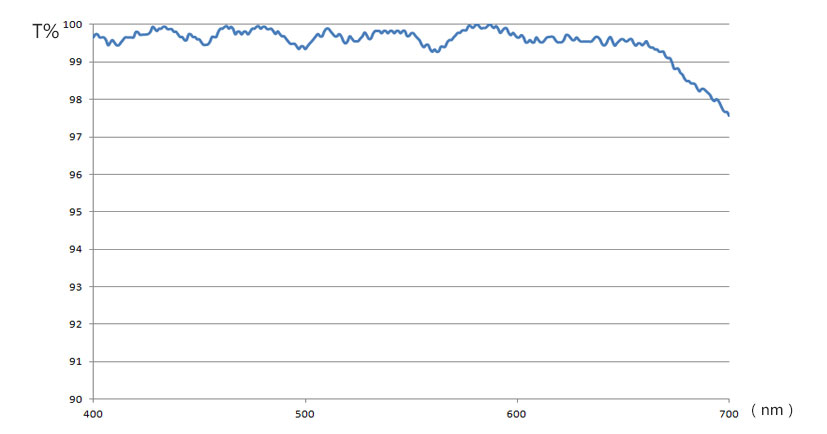

1.Full reflection mirror

AOI: 24°+/-1°

Spectrum: 420-680 nm @ Rave >99%，Rmin >98%

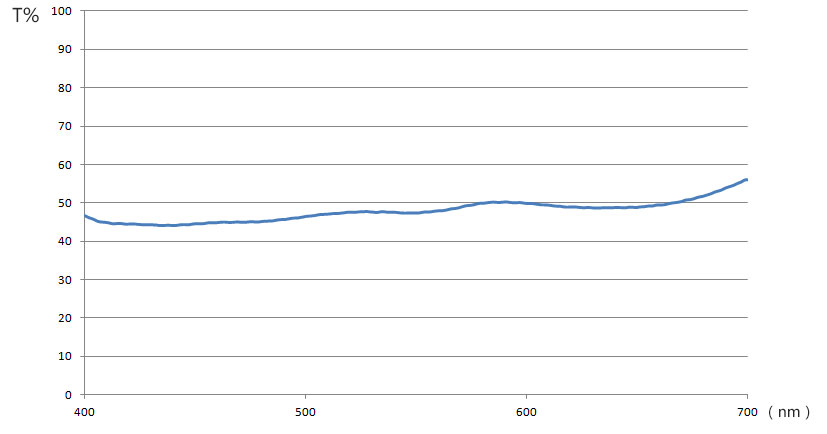

2.Half relection mirror

AOI:45°

T/R=50%±8%

420-680 nm @ Rave >99 %，Rmin >98%

ustproof : Single/double side waterproof/dustproof
