800nm Shortpass Filter
- Filter Type: Shortpass Filter
- Coating Type: Hard Coated
- Cut-on Wavelength (nm): 800nm±3nm
- AOI: 0±5°

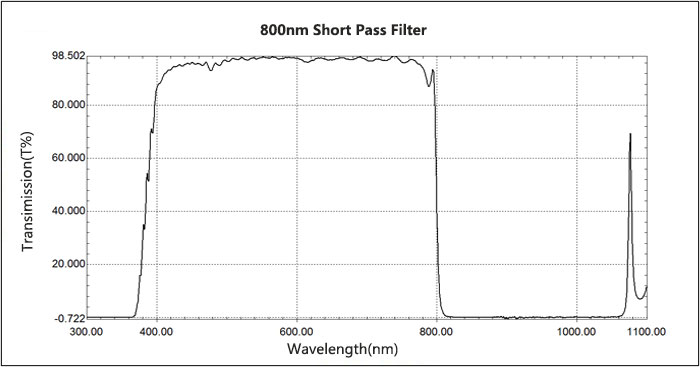

- Spectrum: 410-780 @ Tave>95%, Tmin>90%; T=50% @ 800±10nm; 830-1050 @ Tmax<0.3%, Tave<0.1%.
- Scratch-Dig: 60/40
- Substrate: Fused Silica, B270, Float Glass or other optical glass
|
