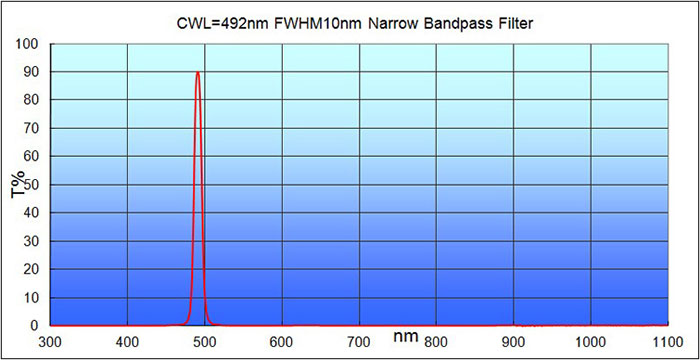

492/10 nm VIS Bandpass Filter

492/10 nm VIS Bandpass Filter

  • Filter Type:  VIS Band Pass Filter
  • Coating Type: Hard Coated
  • Center Wavelength: 492nm
  • FWHM: 10nm
  • Wavelength Tolerance: ±3nm
  • Transmission: T＞85%
  • AOI: 0±5°
  • Blocking Band: 300-475nm & 525-1100nm
  • Scratch-Dig: 60/40
  • Substrate: Fused Silica, B270, Float Glass
