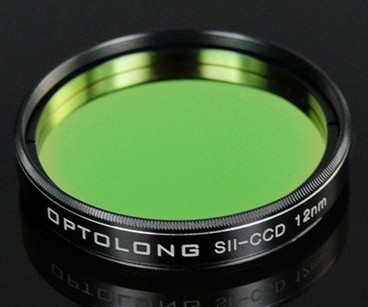

SII-CCD 12nm Deep Sky Imaging Filter

SII-CCD 12nm Deep Sky Imaging Filter

FEATURES:

  • Non-cementing optical substrate coating
  • Electron-beam gun evaporation with Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL(central wavelength) no deviation affected by temperature change
  • Planetary rotation system offers precision and homogeneity of coatings ensuring high value on transmission of pass-band and Optical density of off-band
  • Ultra-thin filter cell minimize vignetting by maximize possible clear aperture (clear aperture is 26mm for 1.25”, 45mm for 2")
  • Aerometal Material, Precise CNC Machining, Sand Blasting Process, Black Anodized Finish, Extinction Treatment to Prevent Reflection, Laser Engraving No Fading.

DESCRIPTION:

SII-CCD 12nm filter (Sulful II for CCD) is designed for nebula observation allowing 12nm bandwidth of light centered on a wavelength of 672nm through, and reducing the transmission of certain wavelengths of light, specifically those produced by artificial light including mercury vapor, and both high and low pressure sodium vapor lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow).

APPLICATION:

  • Use with H-alpha and OIII-CCD narrowband filters (SHO Set) for tricolor CCD astrophotography
  • Narrowband imaging with SHO set can be done with the moon up in heavy light pollution, so your equipment is not sitting dormant for several weeks
  • Hubble look of images can be made by the combination of H-alpha, OIII-CCD and SII-CCD, such as the famous “Pillars of Creation” (M16 Eagle Nebula)
  • Narrowband filter do not eliminate the effects of light pollution or increase the object’s brightness. In many cases, they increase the contrast between nebula and night sky, not brightening the nebula.

Size

Standard 1.25” & 2” | Round 36mm Unmounted

Note : This filter is not designed for sun observation. DO NOT LOOK AT THE SUN WITH THIS FILTER. You would be BLIND if you fail to observe the warning.

  • Schott substrate material
  • Thickness 2.0mm
  • Surface Quality: 60/40 (Refer to MIL-O-13830)
  • Fine-optically polished to ensure accurate 1/4 wavefront and <30 seconds parallelism over the both surfaces

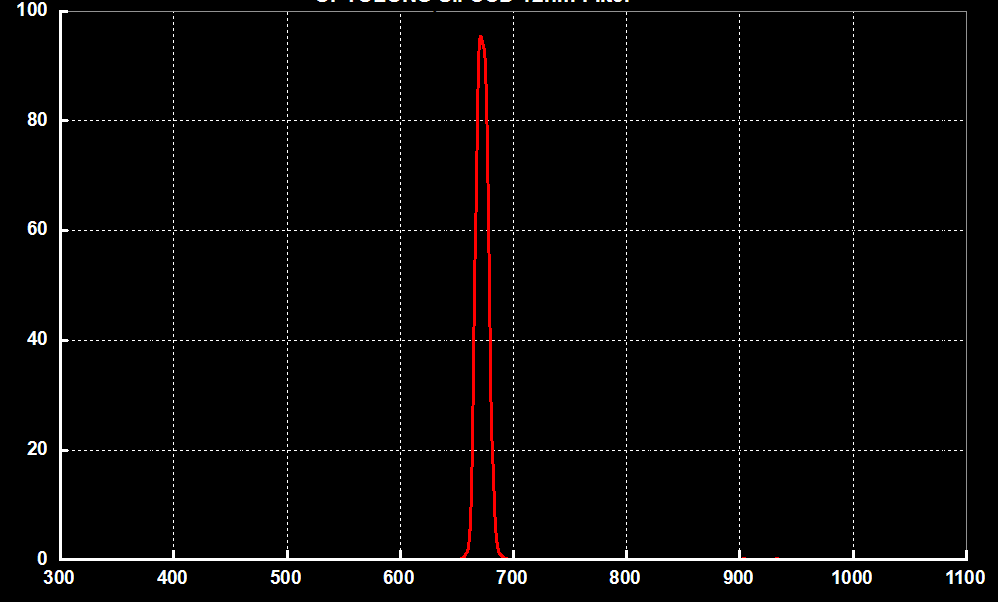

  • 90% transmission at SII line 672nm
  • Infrared wavelength 700-1100nm cut-off
  • 0.1% transmission of off-band, specifically the major emission lines of artificial light pollution (i.e. Na 589nm, Hg 435nm and 578nm). Transmission of 0.1% is equivalent to OD3(Optical Density), and a high optical density value indicates very low transmission, and low optical density indicates high transmission.
