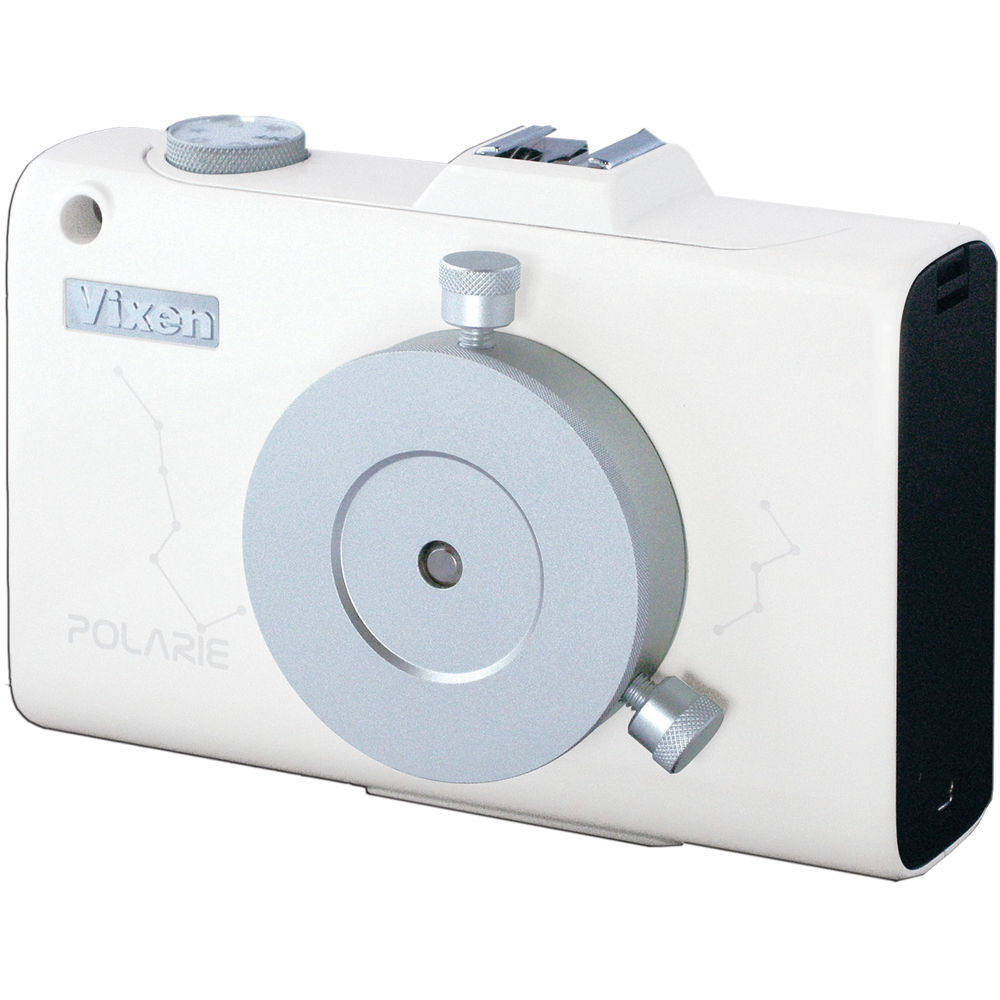

Vixen Polarie Mount

Vixen Polarie Mount

FEATURES:

  • The Polarie can be set up in a few minutes even by those not familiar with the exact position of the celestial pole.
  • Simply turn the Polarie in the direction of the pole star using the supplied compass as a guide, then use the built-in latitude meter and polar sight hole to align the mount.
  • The Polarie is designed to work with camera lenses that take wide-angle images.
  • The Polarie can operate for more than 2 hours on two AA-Size batteries.
  • It’s compact size and minimal weight means you can take the Polarie anywhere to photograph the night sky.

DESCRIPTION:

The Vixen Polarie is a specialist photographic accessory that allows you to take pin-sharp photos of stars and constellations. It is designed to follow the apparent motion of the stars caused by the earth’s rotation, eliminating star trails. Using the Polarie to take wide field images of constellations, shooting stars as well the Milky Way is surprisingly straightforward. Polarie also enables you to photograph “starscapes” by adding a darkened landscape or silhouetted figure in the foreground of your frame.

SPECIFICATION:

  • Tracking Mode: Celestial tracking rate. 1/2 of celestial tracking rate. Solar tracking rate (mean solar time). Lunar tracking rate (mean lunar time) : Usable in both northern and southern hemispheres
  • Wheel gear: 57.6mm dia. aluminium alloy axis with full-circle 144-tooth
  • Worm gear: 9mm dia. high tension brass
  • Power Source: 2 AA-size alkaline batteries (2.4~3.0V)
  • External power supply: USB mini-B connection (4.4~5.25V)
  • Tilt meter: Angles between 0˚ and 70˚ (5˚ increments)
  • Compass: A margin of error is subject to magnetic declination at your location
  • Polar sight hole: About 8.9˚ field of view
  • Drive: Pulse motor (Stepper motor)
  • Tracking mode selector: Sidereal, 1/2 sidereal (star-scape), solar and lunar, usable in both hemispheres
  • Tripod socket: 1/4" -20
  • Maximum payload capacity: 2Kg
  • Operating temperature: 0˚ to 40˚ C (104F)
  • Electricity consumption: DC3V.0.4A at loading weight of 2.0kg (4.4lb)
  • Duration of operation: About 2 hours at 20˚C (68F), a 2.0kg (4.4lb) loading weight using Alkaline batteries
  • Optional accessory: Dedicated polar axis scope
  • Dimension: 3.7 x 5.9x 2.3 inches
  • Weight: 740g (without batteries)
