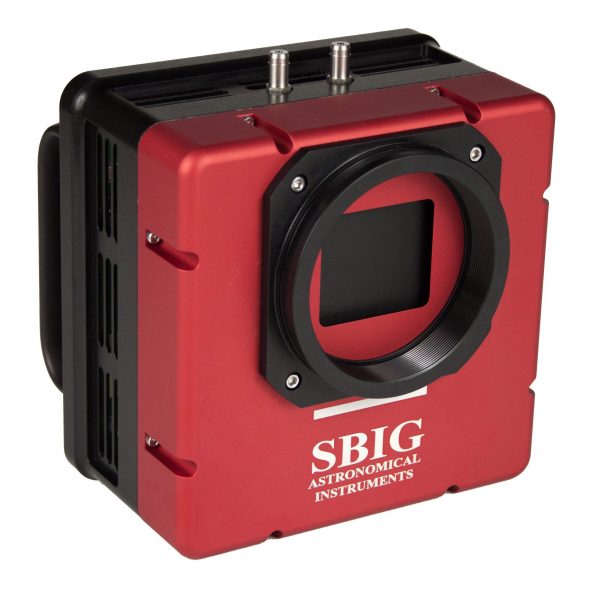

In this package: STXL-16200, FW8G-STXL Self Guided Filter Wheel, AO-X, 50mm round Baader LRGB Set, 50mm round Baader 7nm H-alpha filter, 50mm round Baader 8nm O-III filter, 50mm round Baader 8nm SII filter

A/D Converter

16 bits

Adaptive Optics Option

Y

Anti blooming

y

CCD Size

27 mm x 21.6 mm

Computer Interface

USB /Ethernet

Cooling Delta

60 °C

Dark Current e/p/s at 0 C

0.2 e-/p/s

Exposure

0.12-3600 sec

Filter Size

50mm Round

Filter Wheel Option

y

Full Frame Download

11 sec

Full Well Capacity

41,000 e-

Imaging CCD

KAF-16200

Imaging / Pixel Array

4500 px x 3600 px

Internal Tracking CCD

n

OS Compatibility

Windows 32 and 64 bit OS, Mac

Peak QE

56%

Pixel Digitization Rate

1.8 MHz

Pixel Size

6 μm

Power

12 VDC

Read Noise

9 e-

Remote Guide Head

y

Self-Guiding Filter Wheel

y

Shutter

Mechanical, Even-illumination

Temperature Regulation

y

Total Pixels

16.2 million pixels

Weight

5.2 lbs

A/D Converter

16 bits

Adaptive Optics Option

Y

Anti blooming

y

CCD Grade

Class 2

CCD Size

27 mm x 21.6 mm

Computer Interface

USB2 /Ethernet

Cooling Delta

60 °C

Dark Current e/p/s at 0 C

0.2 e-/p/s

Exposure

0.12-3600 sec

Filter Size

50mm Round

Filter Wheel Option

y

Full Frame Download

11 sec

Full Well Capacity

41,000 e-

Imaging CCD

KAF-16200

Imaging / Pixel Array

4500 px x 3600 px

Internal Tracking CCD

n

OAG Option

n

OS Compatibility

Windows 32 and 64 bit OS, Mac

Peak QE

56%

Pixel Digitization Rate

1.8 MHz

Pixel Size

6 μm

Power

12 VDC

Power Cable

US, European

Read Noise

9 e-

Remote Guide Head

y

Self-Guiding Filter Wheel

y

Shutter

Mechanical, Even-illumination

Temperature Regulation

y

Total Pixels

16.2 million pixels

Weight

5.2 lbs

A/D Converter

16 bits

Adaptive Optics Option

N

Anti blooming

y

CCD Size

4.8 mm x 3.6 mm

Computer Interface

HDMI

Cooling Delta

na

Dark Current e/p/s at 0 C

0.5 e-/p/s

Exposure

0.001-3600 sec

Filter Size

50mm Round

Filter Wheel Option

n

Full Frame Download

0.13 sec

Full Well Capacity

25,000 e-

Imaging CCD

KAI-0340

Imaging / Pixel Array

648 px x 486 px

Internal Tracking CCD

n

OAG Option

n

OS Compatibility

Windows 32 and 64 bit OS, Mac

Pixel Digitization Rate

N/A

Pixel Size

7.4 μm

Power

HDMI

Read Noise

8.6 e-

Remote Guide Head

n

Self-Guiding Filter Wheel

n

Shutter

Electromechanical

Temperature Regulation

n

Total Pixels

314,928 pixels

Weight

2.2 oz

Computer Interface

I2C

Dimensions

6 x 7 x 1.2 in.

OS Compatibility

Windows 32 and 64 bit OS, Mac

Power

Supplied through Camera’s I2C Port

Weight

2.2 lbs (1 kg)
