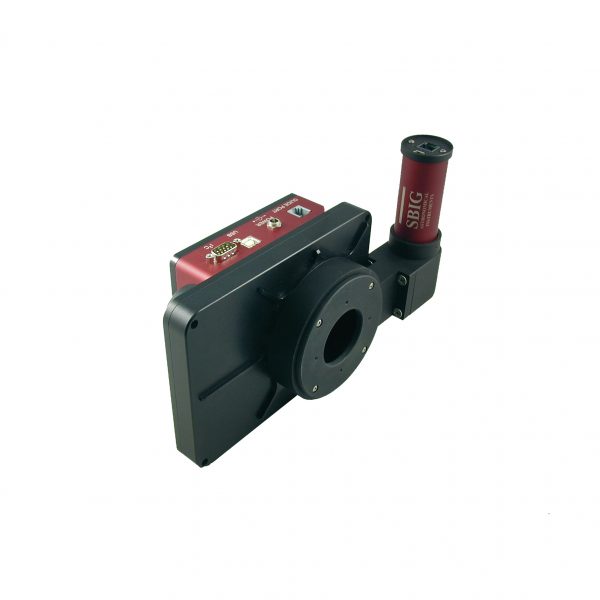

STF-8300M Pro Plus Package w/ Mono ST-i

STF-8300M Pro Plus Package w/ Mono ST-i

        In this package: STF-8300M, ST-I Monochrome, FW8-8300, OAG-8300, 36mm Baader LRGB Set, 36mm Baader Set of 3 filters, Carrying Case STF

A/D Converter

16 bits

Adaptive Optics Option

N

Anti blooming

y

CCD Size

17.96 mm x 13.52 mm

Computer Interface

USB

Cooling Delta

40 °C

Dark Current e/p/s at 0 C

0.2 e-/p/s

Exposure

0.1-3600 sec

Filter Size

36mm / 1.25″

Filter Wheel Option

y

Full Frame Download

1 sec

Full Well Capacity

25,000 e-

Imaging CCD

KAF-8300

Imaging / Pixel Array

3326 px x 2504 px

Internal Tracking CCD

n

OAG Option

y

OS Compatibility

Windows 32 and 64 bit OS, Mac

Peak QE

56%

Pixel Digitization Rate

10 mhz

Pixel Size

5.4 μm

Power

12 VDC

Power Cable

US, European

Read Noise

9.3 e-

Remote Guide Head

With STI/OAG

Self-Guiding Filter Wheel

n

Shutter

Mechanical, Even-illumination

Temperature Regulation

y

Total Pixels

8.3 million pixels

Weight

1.7 lbs



STF-8300

Sensor

Mono

A/D Converter

16 bits

Adaptive Optics Option

N

Anti blooming

y

CCD Size

17.96 mm x 13.52 mm

Computer Interface

USB2

Cooling Delta

40 °C

Dark Current e/p/s at 0 C

0.2 e-/p/s

Exposure

0.1-3600 sec

Filter Size

36mm / 1.25″

Filter Wheel Option

y

Full Frame Download

~1 sec

Full Well Capacity

25,000 e-

Imaging CCD

KAF-8300

Imaging / Pixel Array

3326 px x 2504 px

Internal Tracking CCD

n

OAG Option

y

OS Compatibility

Windows 32 and 64 bit OS, Mac

Peak QE

56%

Pixel Digitization Rate

10 MPix/sec

Pixel Size

5.4 μm

Power

12 VDC

Power Cable

US, European

Read Noise

9.3 e-

Remote Guide Head

With STI/OAG

Self-Guiding Filter Wheel

n

Shutter

Mechanical, Even-illumination

Temperature Regulation

y

Total Pixels

8.3 million pixels

Weight

1.7 lbs



ST-I Guider & Planetary Camera

A/D Converter

16 bits

Adaptive Optics Option

N

Anti blooming

y

CCD Size

4.8 mm x 3.6 mm

Computer Interface

USB2

Cooling Delta

na

Dark Current e/p/s at 0 C

0.5 e-/p/s

Exposure

0.001-3600 sec

Filter Size

1.25″

Filter Wheel Option

n

Full Frame Download

0.13 sec

Full Well Capacity

25,000 e-

Imaging CCD

KAI-0340

Imaging / Pixel Array

648 px x 486 px

Internal Tracking CCD

n

OAG Option

n

OS Compatibility

Windows 32 and 64 bit OS, Mac

Pixel Digitization Rate

4 MHz

Pixel Size

7.4 μm

Power

USB 500 mA

Read Noise

8.6 e-

Remote Guide Head

n

Self-Guiding Filter Wheel

n

Shutter

Electromechanical

Temperature Regulation

n

Total Pixels

314,928 pixels

Weight

2.2 oz

sensor type

Mono



FW8-8300

Computer Interface

I2C

Filter Size

36mm / 1.25"

OS Compatibility

Windows 32 and 64 bit OS, Mac

Power

12 VDC

Shutter



Weight

1.35 lbs



OAG-8300

Faceplate

T-thread pattern, 2.0 x 24 thread pattern, 2.156 x 24 thread pattern
