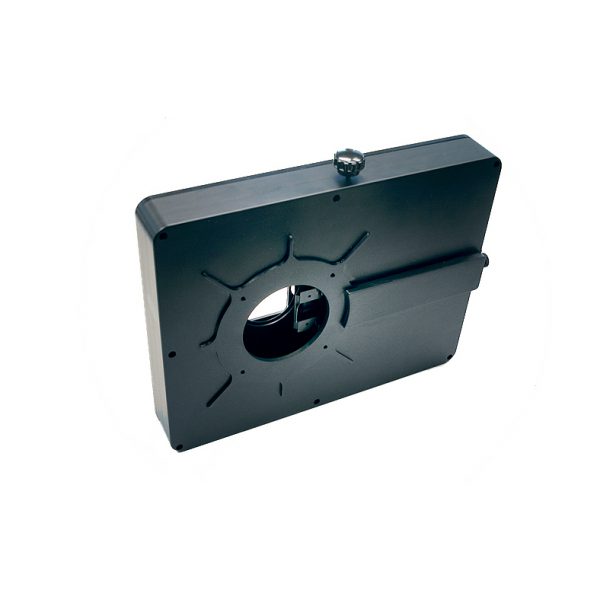

FW8G-STXL

FW8G-STXL

  • Micron-Precision filter positioning
  • Built-in self-guiding CCD in front of the filters
  • Repeatable filter positioning to better than a pixel
  • Holds eight 50mm round unmounted filters

Self-Guiding in Front of the Filters

Self-guiding has long been acknowledged as the best, most accurate way to guide long exposure astrophotos, particularly with commercial SCTs. The single most common complaint however is finding bright stars when guiding through dark or narrowband filters. The STXL filter wheel incorporates a KAI-0340 CCD with 640 x 480 pixels @ 7.4u inside the front cover of the filter wheel so that the guider picks off light from the guide stars before passing through the filters.  This guiding CCD is the same sensor used in the ST-I autoguider.  Moreover, the optical elements that transfer the light from the pick-off mirror to the CCD act as a 0.7X focal reducer, similar to the OAG-8300 configuration.  The result is a doubling of the field of view of the guiding CCD with a correspondingly greater selection of guide stars.

There are two smaller adjustment knobs on the filter wheel base: one for focus and one for moving the pick-off mirror to avoid vignetting.  A larger knob on the side of the filter wheel locks the adjustments in place once the best focus is achieved.  A short cable is provided to connect the filter wheel guider to the remote guide head port on the camera.  In the event that a Standard filter wheel cover is substituted for using Nikon or Canon EOS camera lens adapters, a remote guide head may be used for guiding instead of the built-in self-guiding CCD.  The Standard and Self-Guiding Filter wheel covers are interchangeable.

Micron-Precision Filter Positioning

Both the Standard and Self-Guiding versions of the STXL filter wheels incorporate the same micron-precision filter positioning mechanism as the STT Series cameras.  When taking flat field frames of filtered images, the flat field frame must show exactly the same optical characteristics to be the most effective. If there is dust on the filter, or uneven illumination caused by the filter, this must be positioned exactly the same every time or the flat-field will not be able to remove the image artifact. The STXL filter wheel is designed to provide a new level of accuracy when taking flats through filters by re-positioning filters to within a few microns every time. This allows the system to take extremely accurate flat field frames even after rotating the filter wheel several times, or after a loss of power.

A/D Converter

16 bits

Adaptive Optics Option

N

Anti blooming

y

CCD Size

4.8 mm x 3.6 mm

Computer Interface

HDMI

Cooling Delta

na

Dark Current e/p/s at 0 C

0.5 e-/p/s

Exposure

0.001-3600 sec

Filter Size

50mm Round

Filter Wheel Option

n

Full Frame Download

0.13 sec

Full Well Capacity

25,000 e-

Imaging CCD

KAI-0340

Imaging / Pixel Array

648 px x 486 px

Internal Tracking CCD

n

OAG Option

n

OS Compatibility

Windows 32 and 64 bit OS, Mac

Pixel Digitization Rate

N/A

Pixel Size

7.4 μm

Power

HDMI

Read Noise

8.6 e-

Remote Guide Head

n

Self-Guiding Filter Wheel

n

Shutter

Electromechanical

Temperature Regulation

n

Total Pixels

314,928 pixels

Weight

2.2 oz
