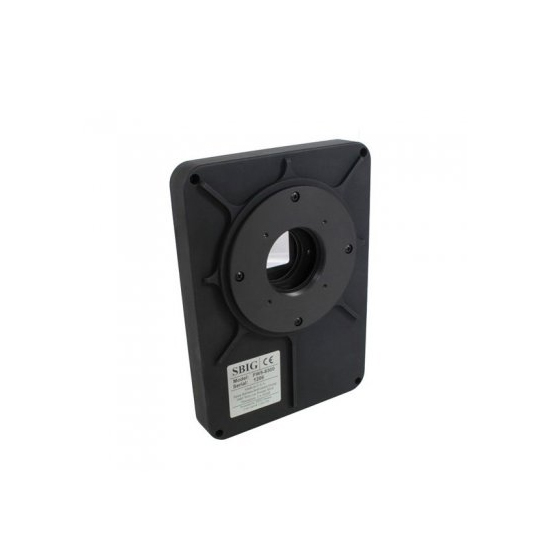

Holds eight 36mm drop in filters for un-vignetted imaging at any f/ratio with STF-8300 cameras. Thin design – adds only 20mm back focus (Total back focus for STF-8300 with FW8-8300 is 38mm). Allows the use of an optional Nikon lens adapter with the filter wheel. Uses the camera’s I2C port for power and commands.  No additional power or computer cable is required.

Computer Interface

I2C

Filter Size

36mm / 1.25"

OS Compatibility

Windows 32 and 64 bit OS, Mac

Power

12 VDC

Weight

1.35 lbs
