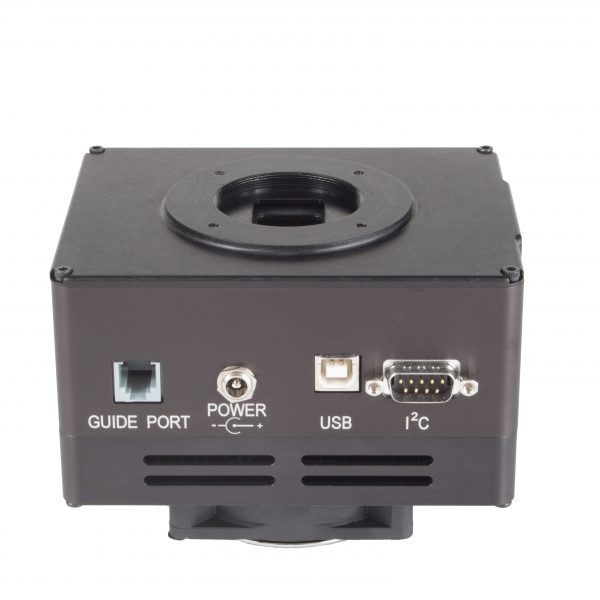

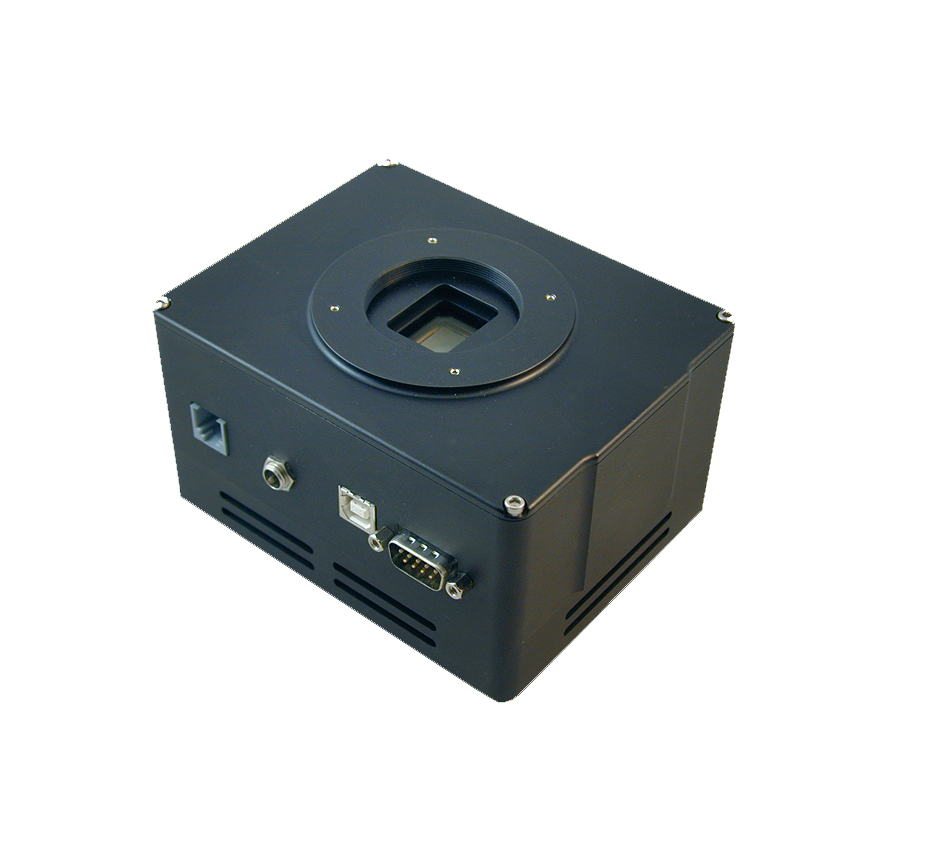

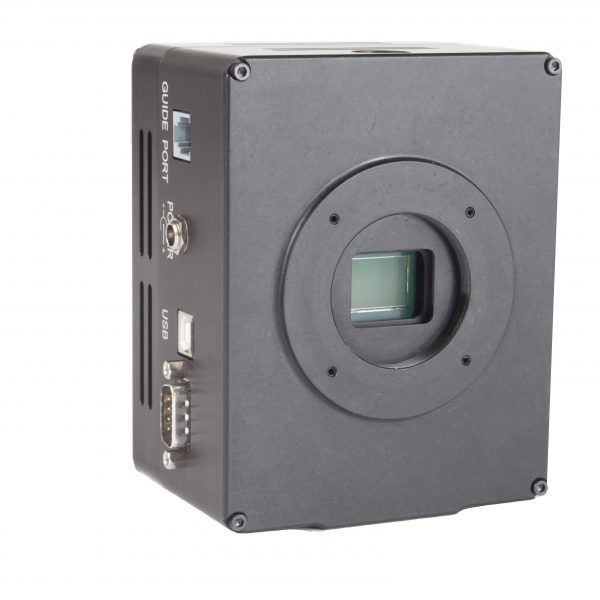

STF-4070C

STF-4070C

The color models are available with either the standard Bayer Color Filter Pattern (STF-4070C) or the higher sensitivity TRUESENSE Sparse Color Filter Pattern (STF-4070SC). The KAI-04070 Image Sensor is a 4-megapixel CCD in a 4/3″ (21.4 mm diagonal) optical format. Based on the TRUESENSE 7.4 micron Interline Transfer CCD Platform, the sensor features broad dynamic range, excellent imaging performance, and a flexible readout architecture. The TRUESENSE Sparse Color Filter Pattern provides a 2x improvement in light sensitivity compared to a standard color Bayer part.

KAI-04070 CCD Key Features:

  • Available in Monochrome, Bayer Color Pattern or TRUESENSE Sparse Color Filter Pattern
  • Progressive scan readout
  • Flexible readout architecture
  • High frame rate
  • High sensitivity
  • Low noise architecture
  • Excellent smear performance
  • Package pin reserved for device identification

Description of the TRUESENSE Sparse Color Filter Pattern.

The TRUESENSE Color Filter Pattern represents a new paradigm for obtaining full-color images from a single image sensor. By adding panchromatic (or “clear”) pixels to the standard red, green, and blue pixels traditionally used for color capture, image sensors can realize a significant increase in light sensitivity – between two and four times compared to standard designs – while retaining overall image quality and color fidelity. Image sensors using this design allow end users to capture better pictures and video under low-light conditions.

 In addition to the new color technology, the STF-4070 has been optimized for fast full frame download and maximum cooling in an STF sized package. A high resolution 4 megapixel 16-bit frame will download in about 1/4 second using the dual channel readout mode. Even at this rapid download rate, the read noise remains exceptionally low, about 9e-.

The STF-4070 was developed primarily for the OEM market, particularly for microscopy applications where short exposures and high frame rates made possible by an electronic shutter are more desirable than having a mechanical shutter for automatic dark frames. Because of this, the STF-4070 cooling design is very robust and the camera is capable of a cooling delta greater than -50 degrees C.

Additional Information:

Imaging CCD

KAI-04070

A/D Converter

16 bits

Adaptive Optics Option

N

Anti blooming

y

CCD Size

15.2 mm x 15.2 mm

Computer Interface

USB2

Cooling Delta

50 °C

Dark Current e/p/s at 0 C

0.02 e-/p/s

Exposure

0.001-3600 sec

Filter Size

36mm / 1.25″

Filter Wheel Option

y

Full Frame Download

0.5 sec

Full Well Capacity

44,000 e-

Imaging CCD

KAI-4070

Imaging / Pixel Array

2048 px x 2048 px

Internal Tracking CCD

n

OAG Option

y

OS Compatibility

Windows 32 and 64 bit OS, Mac

Peak QE

52

Pixel Digitization Rate

10/20 MHz

Pixel Size

7.4 μm

Power

12 VDC

Power Cable

US, European

Read Noise

9 e-

Remote Guide Head

With STI/OAG

Self-Guiding Filter Wheel

n

Shutter

Electronic

Temperature Regulation

y

Total Pixels

4.0 million pixels

Weight

2.15 lbs
