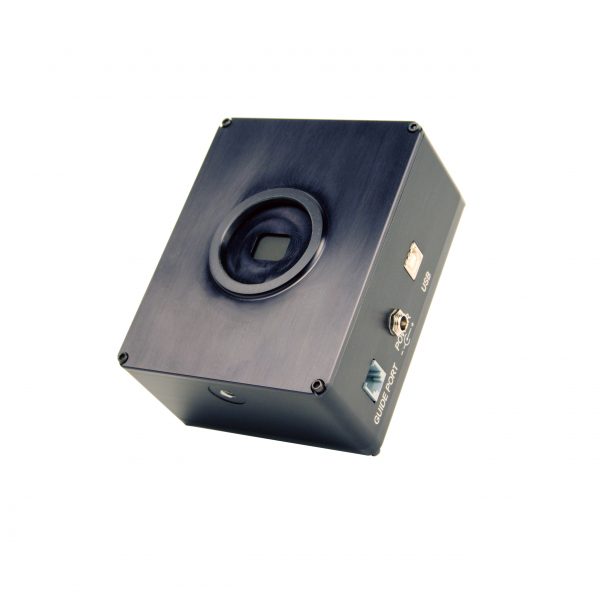

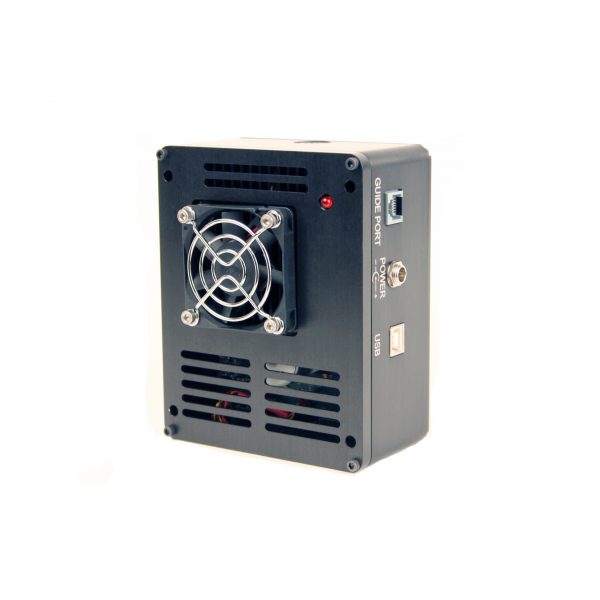

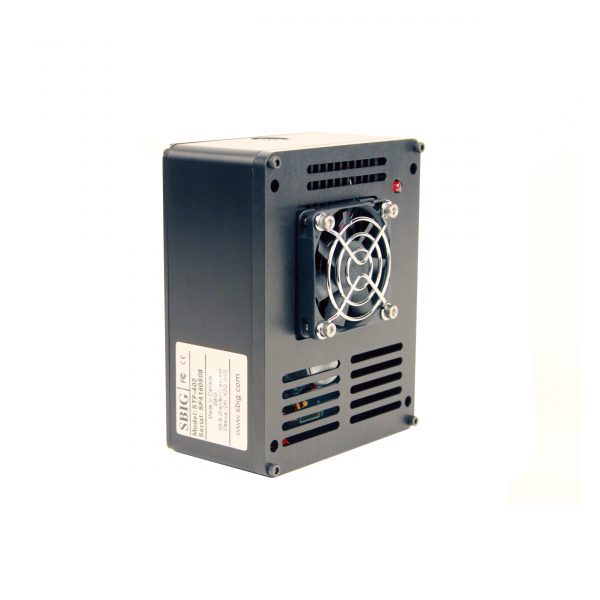

The SBIG STF-3200M is a compact, economical, high QE camera with a scientific grade full frame CCD.  It is excellent for educational and research use, as well as industrial applications. The KAF-3200ME sensor is 2184 x 1472 pixels at 6.8 microns, with built-in micro lenses producing unparalleled quantum efficiency as high as 85% peak.  This makes the KAF-3200ME perhaps the most sensitive front-illuminated sensor ever made. The small size and light-weight of these cameras make them very easy to handle and set up.  These cameras have a photometric quality, even-illumination shutter for automatic dark frames.  The low noise and extraordinary QE of these sensors make these cameras some of the most sensitive CCD cameras available at any price.

A/D Converter

16 bits

Adaptive Optics Option

N

Anti blooming

n

CCD Size

14.9 mm x 10 mm

Computer Interface

USB2

Cooling Delta

30 °C

Dark Current e/p/s at 0 C

0.4 e-/p/s

Exposure

0.09-3600 sec

Filter Wheel Option

n

Full Well Capacity

55,000 e-

Imaging CCD

KAF-3200

Imaging / Pixel Array

2184 px x 1472 px

Internal Tracking CCD

n

OAG Option

y

OS Compatibility

Windows 32 and 64 bit OS, Mac

Peak QE

85

Pixel Digitization Rate

5 MPix/sec

Pixel Size

6.8 μm

Power

12 VDC

Power Cable

US, European

Read Noise

18 e-

Remote Guide Head

With STI/OAG

Self-Guiding Filter Wheel

n

Shutter

Electromechanical

Temperature Regulation

y

Total Pixels

3.2 million pixels

Weight

1.7 lbs
