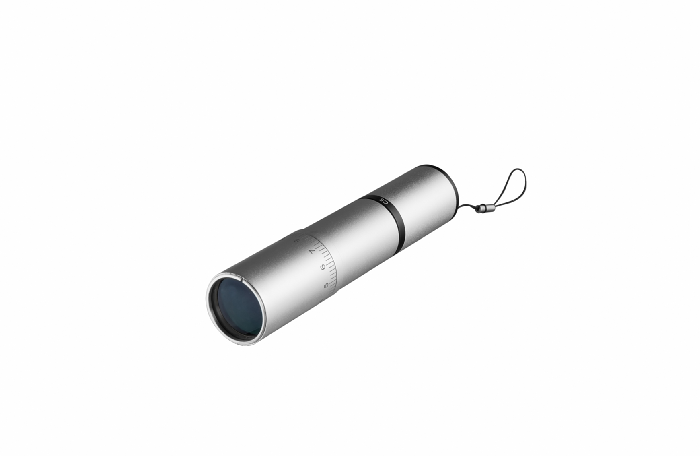

The miniGuideScope is exquisite in workmanship, elegant in style, and has a high face value, which can bring a stylish look to your guiding camera. Weight (telescope only) 111 grams.

In the era of high sensitivity and small pixel cameras, do you need a large and heavy guide scope? The answer is negative. Due to the high resolution (smaller pixels size) of the guide camera and the increase of the pixel density, the guide scope does not need to be a long focal length to sense the movement of the star image. As sensitivity is improved, it does not require a large aperture. As the focal length of the guide scope is shortened, the field of view increases, so that more guide stars will be within a fixed field of view. Based on these ideas, QHYCCD introduced the miniGuideScope.

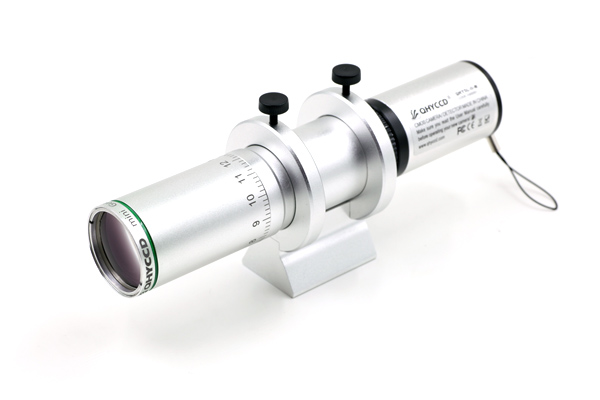

QHYCCD introduced the miniGuideScope to match the famous QHY5L-II planetary/guide camera. However, it is compatible with all of the QHY5II Series cameras and the QHY5III Series cameras. By using a back-illuminated Series III cameras, the sensitivity and accuracy of the system is improved even more.

The miniGuideScope has a focal length of 130mm and a diameter of 30mm. The weight is only 111g. The use of broadband anti-reflection coating on the achromatic lens assures image quality that is sharper then the use of a telephoto industrial lens. Sharper star images provide better feedback regarding tracking error, so the accuracy of the system is improved.

Compatible camera models QHY5L-II-M, QHY5L-II-C, QHY5R-II-C, QHY5P-II-C, QHY5P-II-M, QHY5III224, QHY5III178, QHY5III185, QHY5III174, QHY5III290

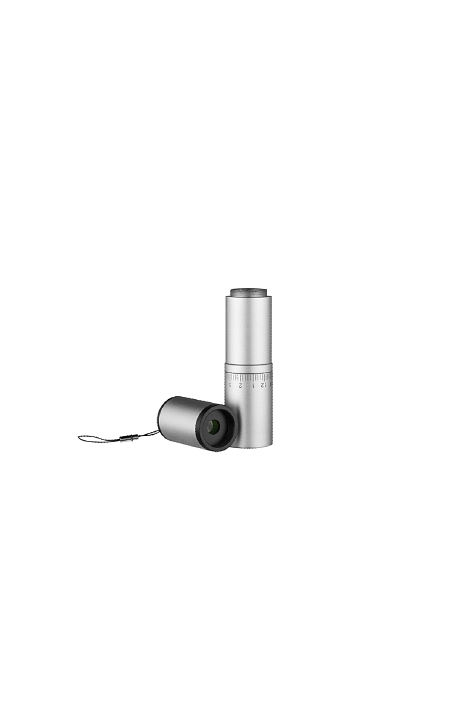

The front threaded focusing design with locking screw greatly simplifies the focusing mechanism without compromising accuracy. A number is engraved on the front focus ring to make it easy to remember the focus position. It can even be replaced with a short screw to permanently lock it in place once good focus is achieved.

Broadband anti-reflection coating on the achromatic lens assures sharp star images thus improving the tracking accuracy of the system.

  • Model: miniGuideScope
  • Diameter: 30mm
  • Focal Length: 130mm
  • Aperture: 1:4.3
  • Object Lens Type: Doublet
  • Focus System: Front Side Focuser
  • Focus locker: Yes
  • Camera Interface: C/CS Mount
  • Compatible Cameras: QHY5II and QHY5III series
  • Anti-Scatter Light Matt Paint: Yes, Internal painted
  • Weight (OTA only): 111gram
  • Telescope Connector: Optional Standard ViewFinder Scope Connector with Tripod Screw Thread
  • Diameter of the OAT : 31.6mm
  • Focus Adjustable Range: Inf. to 1.5 meter
