QHY5-II USB2 Series

QHY5-II USB2 Series

Compact, high speed and high sensitivity

After the success of QHY5 guiding camera(2006-2012), QHYCCD released the new generation Guide/Planetary Camera QHY5-II. QHY5-II series camera improved the transfer speed of USB. It can get the maxium USB2.0 transfer speed up to 39MByte/s , 30FPS@1280*1024 or 1280*960 on modern computers and hundreds of frames at some ROI mode.

QHY5-II use 1.25inch style eyepiece shape design.It is very idea for the low weight guider setup. With the location ring it can get the confocal with the your eyepiece. It is very tight but still powerful. Improved thermal design can transfer the heat of CMOS sensor to the metal case and get to telescope eyepiece tube quickly.

The QHY5-II supply both native WDM drivers and Broadcast WDM drivers. It means you can use it as a ultra high performance webcam for video chart or video livebroad cast. You can show the realtime astronomy scene to your friends with this camera.

QHY5-II series can be connected with the QHY InterCam standalone camera.

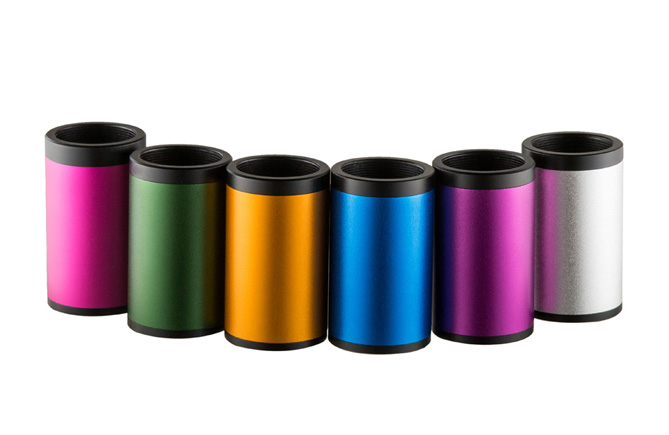

QHY5-II Series Family

QHY5-II
CMOS Sensor
MT9M034
MT9P006/P031
ASX340
MT9M001
Full Resolution
1280*960
2592*1944(*)
720*576
1280*1024
Imager size
1/3inch
1/2.5inch
1/4inch
1/2inch
Max FPS on full resolution
30
7
100
30
Max FPS on 640*480
106
63
100
106
Color Version
QHY5L-II-C
QHY5P-II-C
QHY5R-II-C
N.A
Mono Version
QHY5L-II-M
QHY5P-II-M
N.A
QHY5-II-M
Pixel Size(um)
3.75
2.2
5.6
5.6

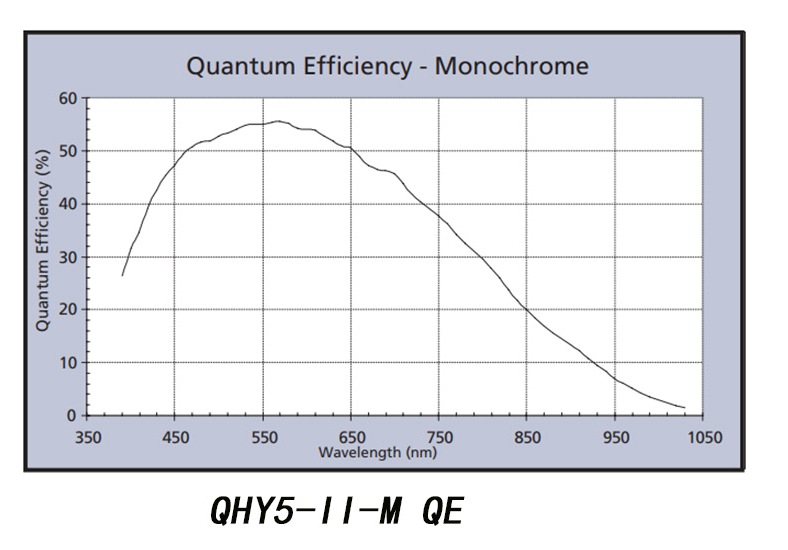

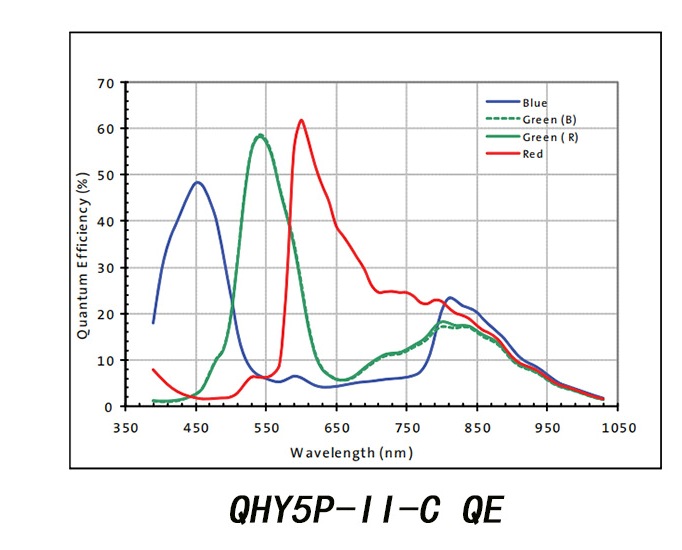

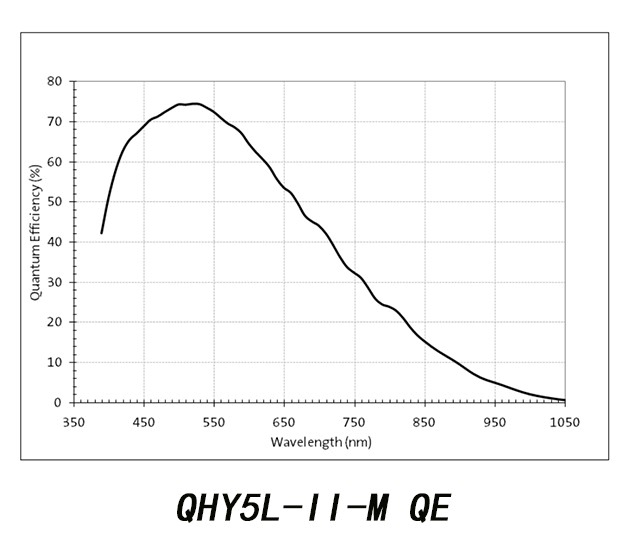

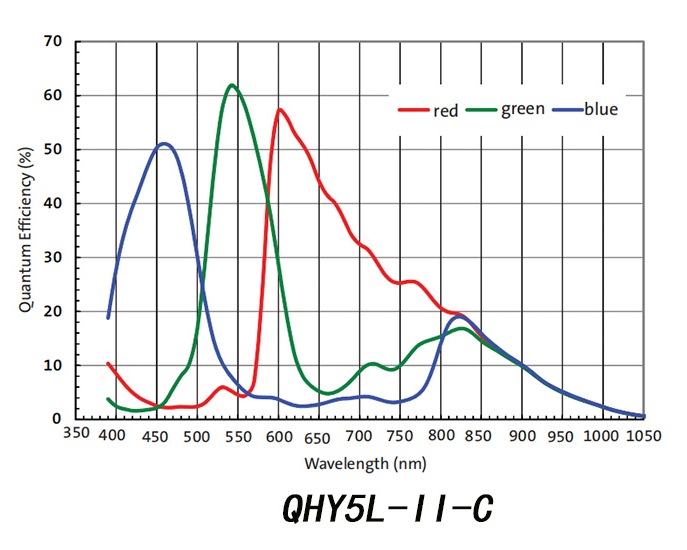

Peak QE
74%@Mono
63%@Mono
60%@Green
56%@Mono
