Performance
11 Megapixels 35mm Format CCD

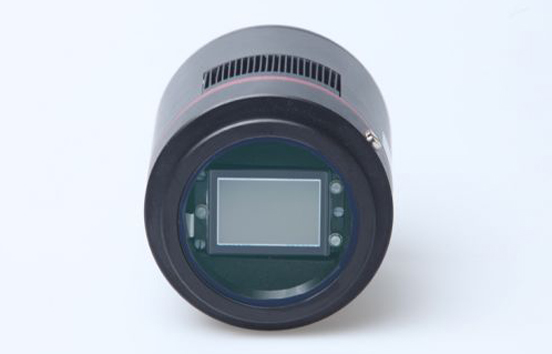

The QHY11 uses the TrueSense KAI-11002 35mm format (36mm x 24mm) CCD with 11 megapixels at 9 microns. It offers a wide field of view, good sensitivity and anti-blooming to prevent bright stars from causing streaks in long exposures. This CCD is well established over the years as the workhorse for many of the best astro-imagers in the world and numerous APODs have been taken with cameras using this sensor.

Design

Small Diameter Cylinder Shape Design

The circular design with a small diameter makes it ideal for use in telescope systems such as Hyperstar or other focal plane configurations without unnecessary occlusion by the camera body.

Cooling
-45C Delta T Less Thermal Noise

The typical cooling performance of the QHY11 is -45 degrees Celsius below ambient temperature. Compared to similar cameras using the KAI11002 or KAI11000, the QHY11 has greater cooling, so the thermal noise or dark current noise in long exposures will be lower than these other models.

Technology

Anti-Dew Measures Two-Pronged Approach

The QHY11 has a sealed CCD chamber with a desiccant tube connection for moisture control in the chamber. In addition, the camera has an external heating plate on the chamber window to prevent moisture from the atmosphere from settling on the window as dew.

Compatibility
Filter Wheel Port Off-Axis Guider

The QHY11 has our standard 4-pin filter wheel port for automatic control of a QHY filter wheel. The camera is compatible with both the CFW2 and new CFW3 filters wheels holding up to seven 50mm round unmounted filters. The large OAG and guide camera can be attached to create a complete self-guiding system.

Sensor Type

The KAI-11002 is a progressive scan interline transfer CCD with anti-blooming protection.

Built-in Frame Buffer

The QHY11 has an internal 32MByte SDRAM image buffer.

Recycle Program

If you have a camera with a KAI-11002 CCD and want to install it in a new QHY11 body, contact QHYCCD for details.

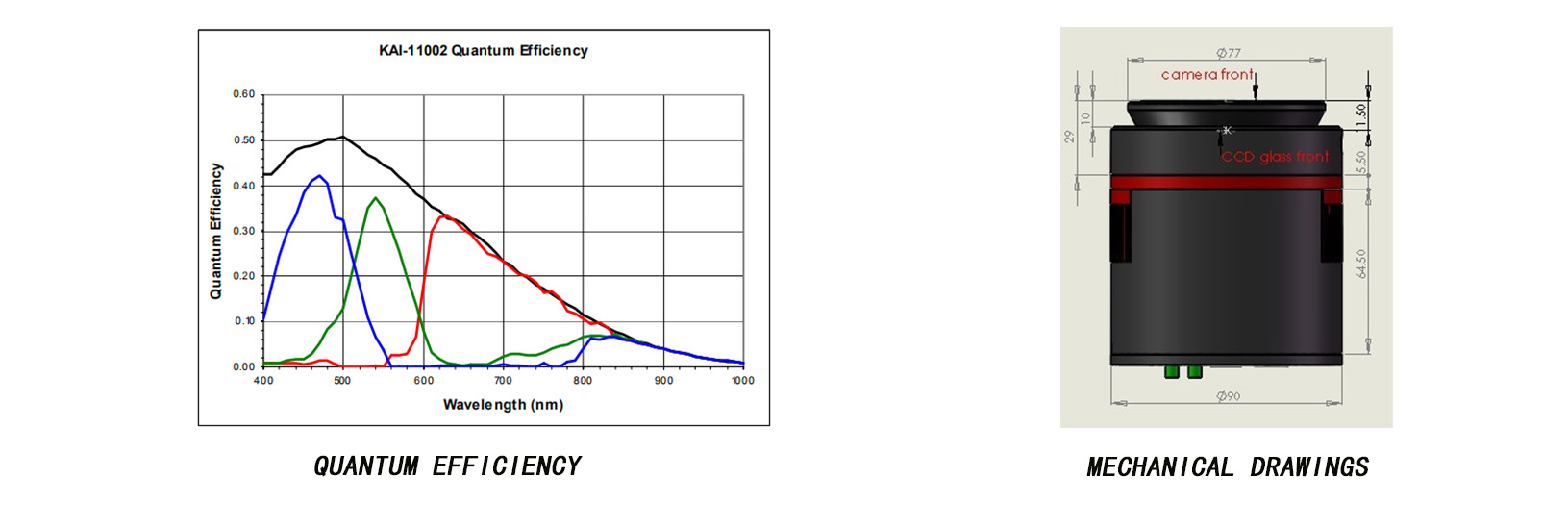

  • Version: QHY11-M
  • CCD Sensor:  KAF11002
  • Pixel Size: 9um*9um
  • Effective Pixel Area: 4032*2688
  • Effective Total Pixels: 11 megapixels
  • Effective Image Area: 36.3mm*36.3mm
  • AD Sample Depth: 16bit
  • Readout Noise: 12-14e- @1Mpixel/s
  • Fullwell: 55ke- to 60ke-
  • QE: 50%
  • Computer Interface: USB2.0
  • Shutter Type: Electric Global Shutter
  • Pixel Binning: 1*1 2*2 3*3 4*4
  • Anti Blooming: Yes, 1000X
  • Microlens on pixel: Yes
  • Build-in Image Buffer: Yes,32MBytes SDRAM buffer
  • CCD Readout Type: Progressive Scan
  • Sensor Size: Full frame format
  • Cooling System: Dual Stage TEC (-40C below ambient)
  • Anti-Dew Heater Window: Extra Setup with Center adjustment Ring
  • Camera Interface: M54/0.75
  • Trig IN/OUT socket: Yes
  • Weight: 672gram
