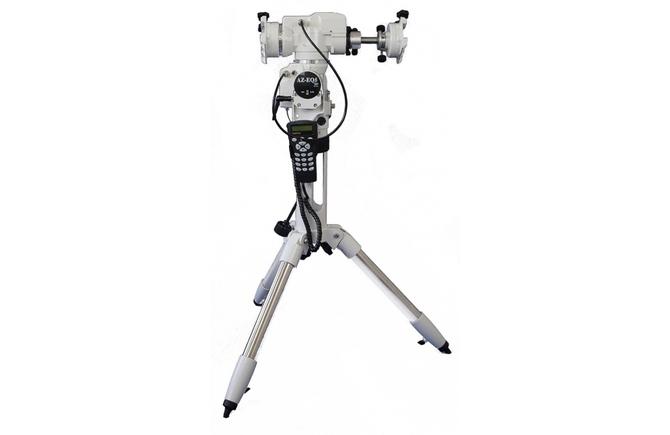

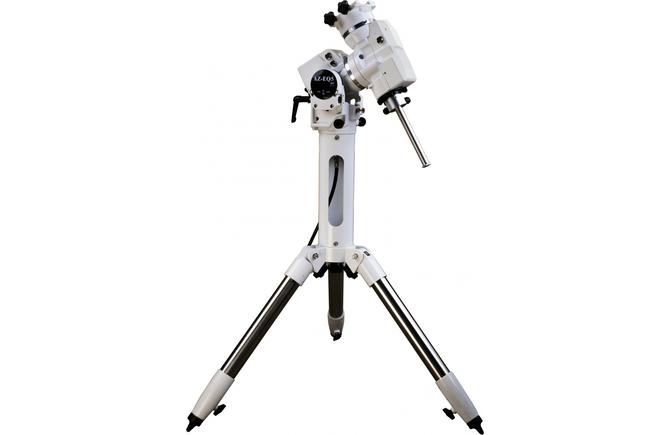

AZ-EQ5 GOTO Mount + Steel Tripod

AZ-EQ5 GOTO Mount + Steel Tripod

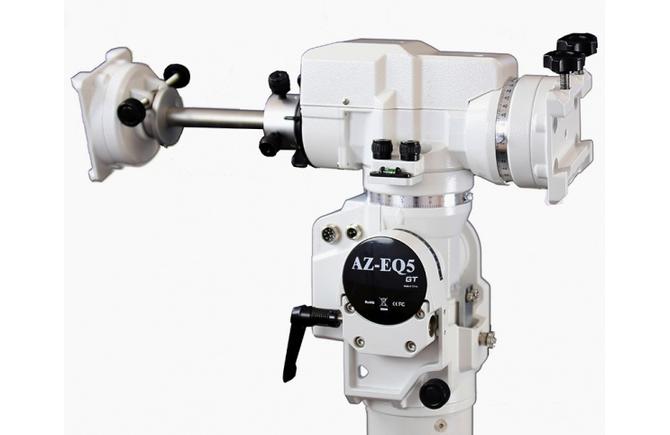

    The Sky-Watcher AZ-EQ5 SynScan Go To mount is equally useful as a EQ mount, or operating in AZ mode. The AZ-EQ5 SynScan features hybrid stepper motor drives on both axes for smooth slewing at up to 4.2o .

    The mount accepts the standard ST-4 style autoguider input for astrophotography, and also has a DSLR shutter control port. Supplied with a SynScan handset with dual AZ/EQ firmware, it can automatically find and track 42,900+ celestial objects from its database.



Mount Type EQ/Alt-AZ Dual Mode
Counter Weight 2 x 3.5kg
Motor Drive 1.8 º Hybrid Stepper Motor
GoTo SynScan Hand Control
Tripod Height 747 mm pier tripod
Tripod Weight 6.1kg pier stand (mount weight 7.7kg)
Shipping Weight 11kgs; 5kgs
Shipping Carton Dimensions 47x45x31cm3;89x28x34cm3
Power Supply DC11~16V 3A
Payload Capacity 15kg
Tracking Modes Alt-azimuth / Equatorial mode
Tracking Rates Sidereal / Solar / Lunar rate
Slewing Speed Maximum 4.2 degrees/second
Guiding Speed 0.125X, 0.25X, 0.5X, 0.75X, 1X
