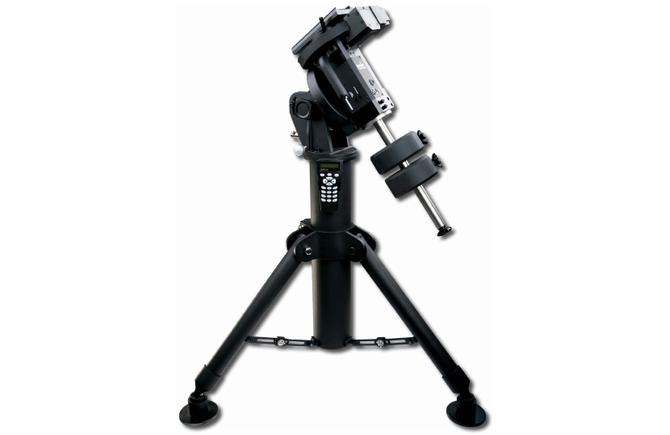

EQ8 GOTO + Steel Tripod

EQ8 GOTO + Steel Tripod

The EQ8 High Precision EQ mount is pier tripod - based. It comes with a SynScan hand hand controller,  2x10kg counterweights and a GPS, with a payload of 50kg. The patented Freedom Find (dual-encoder) technolgy allows the telescope to be moved manually whenever the user wishes - but with no need for re-alignment!

Freedom Find™ - tracking made easy!

With the patented Freedom Find (dual-encoder) technology which allows the telescope to be moved manually or electronically in either axis without losing its alignment or positional information. After moving to a new object the telescope will automatically begin to track the new object accurately. No re-setup is required in one observing session.

The EQ8 mount is equipped with auxiliary encoders on both the R.A. axis and Dec. axis. Therefore, the mount can keep tracking its current position even when a user unlocks the clutches and rotates the mount in R.A. axis and Dec. axis by hand.  With this feature, a user can manually operate the mount anytime without worrying about losing the mount’s alignment status. When the user wants to operate the mount with the SynScan hand control again, no alignment is required and all that is needed to be done is to re-lock the clutches.

This feature can be enabled or disabled on the SynScan hand controller.

  •  Permanent Periodic Error Correction

The EQ8 mount is equipped with an index on its R.A. worm. Thus the motor controller can keep tracking the current position of the worm. After a proper PEC training routine, in which the training data is stored in the motor controller permanently, a user can start the periodic error correction (PEC) at any time to improve the tracking performance for short focal length astrophotography. A training process is not required in the next observing session (assuming that the polar alignment is always accurate), thus this is a Permanent Period Error Correction (PPEC). A user can train the mount with manual guiding or auto-guiding. For detailed instructions please refer to the SynScan hand controller manual.

  •  Batch Exposure Function

The EQ8 mount is equipped with a SNAP port which can control the shutter release of a camera. Working with the SynScan hand control’s “Camera Control” function, a user can take batch exposures when doing astrophotography. Up to 8 groups of “Exposure-time & Frames” combinations can be set on the SynScan hand controller. For detailed information, refer to the SynScan hand controller manual.

  •  Auto-Home Function

The EQ8 mount is equipped with two home position sensors. Working with the SynScan hand controller, the mount can be placed to the same home position after turning on the power. For detailed information, refer to the SynScan hand controller manual.

FEATURES:

  • Super Smooth PE Curve,
  • Permanent Periodic Error Correction,
  • Whisper Slew,
  • Small Backlash,
  • Auto-Home Function,
  • DSLR Interface,
  • Freedom FindTM
  • Precise polar-alignment with SynScan hand controller,
  • AdjustablePier Tripod (0.75m - 1.00m)
Mount Type German Equatorial GOTO
Telescope Mounting Method Tube Rings with Dovetail Bar
Tripod Pier Tripod
Accessory Tray No
Counter Weight 2 x 10kgs
Tripod Weight 31kgs
Tracking Modes EQ
Tracking Rates Ssidereal, Solar rate, Lunar rate
Slewing Speed Maximum 3.3°/second
Guiding Speed 0.125x, 0.25x, 0.5x, 0.75x, 1x
Power Supply DC11-16v 4A
Motor Drive 0.9 º Hybrid Stepper Motor
SynScan Hand Control YES
Payload Capacity 50kgs
Shipping Weight 31kgs + 28kgs+ 11kgs+ 11kgs
Shipping Dimensions

98x48x50 cm3 ; 66x61x71 cm3

24x13x26 cm3 ; 24x13x13 cm3
