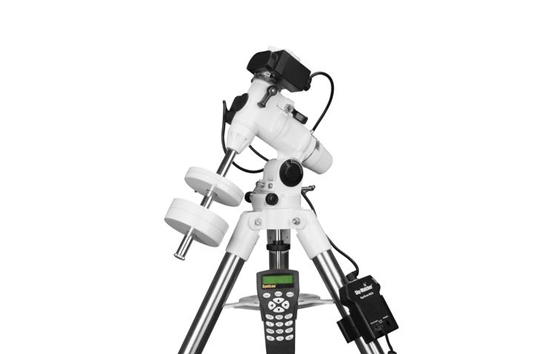

EQ3 SynScan

EQ3 SynScan

Sky-Watcher offers simple solutions for users who would like to attach their smaller telescope to a convenient computerized system but do not wish to deal with the weight of the HEQ5 or EQ6 mount. The EQ3 Pro mounts use the same Go-To system found in the HEQ5 and EQ6 Pros-- SynScan. It allows you to point the telescope at a specific object or even tour the skies at the touch of a button.The EQ3 SynScan mounts are the perfect instrument for novice visual observers to enjoy astronomy with minimal setup time and in-depth knowledge of the night sky.  For novice users, the user-friendly menu allows automatic slewing to 42,900+ objects.

FEATURES:

  • Positioning Accuracy up to 1 arc minute. Accuracy enhanced by software collimation error (mount mechanical error) compensation
  • Stepper motors with 1.8° step angle and 32 micro steps driven.
  • Slewing speed up to 3.4°/sec (800X).
  • Guiding speed selectable from 0.25X, 0.50X, 0.75X, or 1X.
  • Object database containing complete Messier, NGC & IC catalogues.
  • Periodic Error Correction.
  • PC compatibility.
  • Upgradeable hand control via internet download.
Mount Type

German Equatorial GOTO

Telescope Mounting Method

Tube Rings with Dovetail Bar

Tripod

Heavy Stainless Steel Legs

Accessory Tray

Large wall-to-wall

Counter Weight

3.42 + 1.8kgs

Counterweight Shaft Material

Stainless Steel

Tripod Weight

5.6kgs

Tripod Height

85-121cm

Motor Type

Microstep driven 1.8° stepper motors

Slewing Speed

up to 3.4°/sec (800x)

Guiding Speed 0.25x, 0.50x, 0.75x, 1x
Power Supply

11 to 15 V DC 2Amp (Centre positive)

Motor Drive

Built-in

SynScan Hand Control

YES

Payload Capacity

5.5kgs

Shipping Weight

28kgs

Shipping Dimensions

97x44x29 cm
