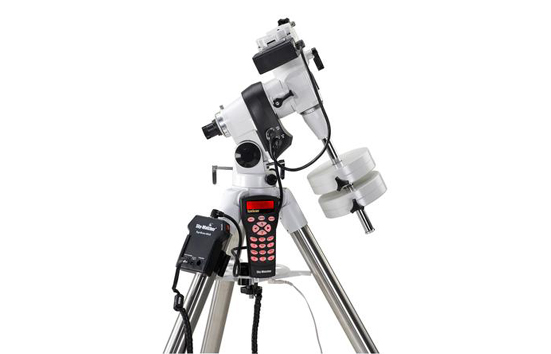

EQ5 SynScan

EQ5 SynScan

Sky-Watcher offers simple solutions for users who would like to attach their smaller telescope to a convenient computerized system but do not wish to deal with the weight of the HEQ5 or EQ6 mount. The EQ5 Pro mounts use the same Go-To system found in the HEQ5 and EQ6 Pros-- SynScan. It allows you to point the telescope at a specific object or even tour the skies at the touch of a button.

The EQ5 SynScan mounts are the perfect instrument for novice visual observers to enjoy astronomy with minimal setup time and in-depth knowledge of the night sky.  For novice users, the user-friendly menu allows automatic slewing to 42900+ objects.

FEATURES:

  •  Positioning Accuracy up to 1 arc minute. Accuracy enhanced by software collimation error (mount mechanical error) compensation.
  • Stepper motors with 1.8° step angle and 32 micro steps driven.
  • Slewing speed up to 3.4°/sec (800X).
  • Guiding speed selectable from 0.25X, 0.50X, 0.75X, or 1X.
  • Object database containing complete Messier, NGC, and IC catalogues.
  • Periodic Error Correction.
  • PC compatibility.
  • Upgradeable hand control via internet download.
Mount Type German Equatorial GOTO
Telescope Mounting Method Tube Rings with Dovetail Bar
Tripod Heavy Stainless Steel Legs
Accessory Tray Large wall-to-wall
Counter Weight 2 x 5.1kgs
Counterweight Shaft Material Stainless Steel
Tripod Weight 5.6kgs
Tripod Height 85-121cm
Motor Type Microstep driven 1.8° stepper motors
Slewing Speed up to 3.4°/sec (800x)
Guiding Speed 0.25x, 0.50x, 0.75x, 1x
Power Supply 11 to 15 V DC 2Amp (Centre positive)
Motor Drive Built-in
SynScan Hand Control YES
Payload Capacity 9.10kgs
Shipping Weight 28kgs
Shipping Dimensions 106x49x26 cm
