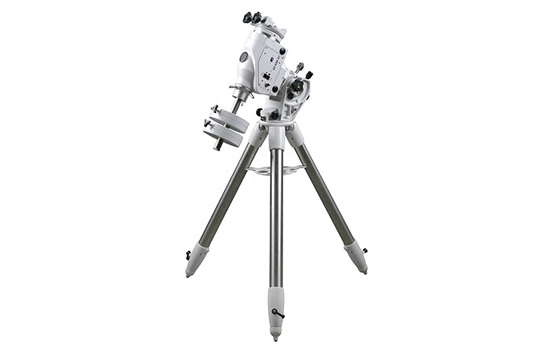

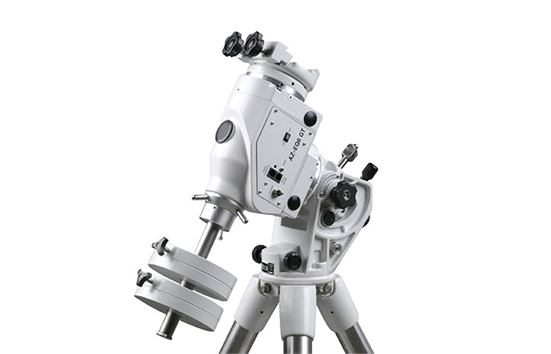

AZ-EQ6 GOTO Mount + Steel Tripod

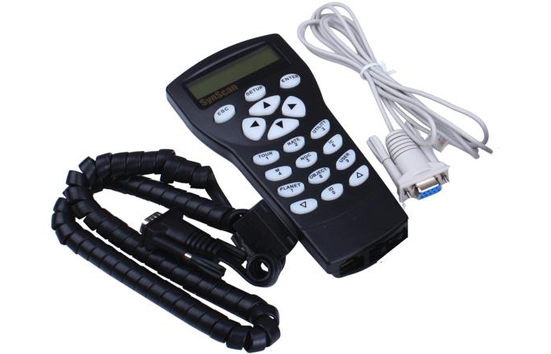

The Sky-Watcher AZ-EQ6 SynScan gives optimal stability and pointing accuracy for a wide variety of heavy professional photo and video equipments. It is a hybrid mount with alt-azimuth capability for general use, and equatorial capability for astrophotography use. Supplied with a SynScan handset with dual AZ/EQ firmware, it can automatically find and track 42,900+ celestrial objects from its database.
AZ-EQ6 SynScan is capable of carrying heavy-duty photographic equipments for professional shooting and video recording. It is a very efficient transportable mount weighing only 15 kg, for a load capacity of 20 kg (counterweight excluded).
Freedom Find™ - tracking made easy!
With the patented Freedom Find (dual-encoder) technology which allows the telescope to be moved manually or electronically in either axis without losing its alignment or positional information. After moving to a new object the telescope will automatically begin to track the new object accurately. No re-setup is required in one observing session.
Special Applications of EQ6 and AZEQ6 Pro mounts:
Our equatorial or alt-azimuth GOTO mounts are not just for telescopes; some of our customers also use EQ6 or AZEQ6 Pro mount to work as a 2-axis precise positioning or rotation test platform with its heavier payload capacity and to be controlled by a computer to simulate in variety testing or measurement conditions, such as the applications of device test platform for Measurement While Drilling (MWD) in oilfield drilling industry etc. "
NEW FEATURES:
- German Equatorial / Alt-Az dual mode
- Permanent periodic error correction(PPEC). PPEC can be trained with Autoguider or PC.
- Belt drive - Super smooth PE curve. Low backlash, silent slewing.
- Shutter release control for batch exposures of astrophotography.
- Motor controller with high torque and accuracy.
- Include two dual-fit (45mm/75mm) saddle for mounting two telescopes.
- Improved reliable power supply outlet.
- New motor controller with higher torque and accuracy.
- Polar-alignment with polar-scope.
- Primary axis encoder tracks the mount's position. Users can push the mount at any time without worrying about losing the mount's alignment
INCLUDES:
- Two Dual-fit Saddles
- Driving Resolution: Approximately 0.14 arc seconds
- DSLR Electronic Shutter Release Port : Yes
- Autoguider Port: Yes
- PEC control in EQ mode
- Polar Alignment : via supplied polar scope
- Alignment methods: 1, 2, or 3 star alignment (EQ) / brightest star or 2 star alignment (AZ)
- Telescope Connection: 2 x dual-fit saddle plates supplied accepting 45mm & 75mm dovetail bars
- RA/DEC Worm Gears: D=92.5mm, 180 teeth, brass
- RA/DEC Axes: D=40mm, steel
- Latitude Adjustment Range: 10o to 70o, 90o
- Azimuth Adjustment Range: About ± 9o
|
