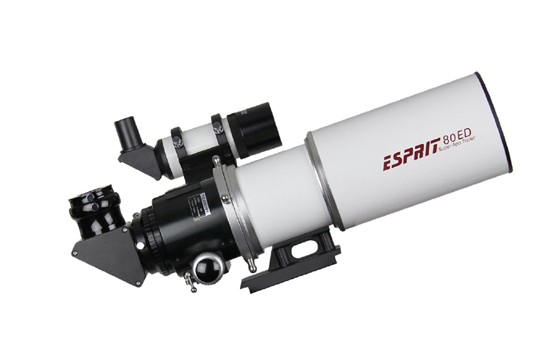

Esprit 80ED APO Triplet

Esprit 80ED APO Triplet

    Esprit 80ED, 100ED, 120ED and 150ED Super APO refractors have a doublet field flattener to get a flat field and minimize aberration and distortion. Their wide 48mm opener ensures a larger and clearer aperture and also extremely minimized halation.

    Connect the triplet and doublet field flattener with a high precision thin thread to keep the optical axis perpendicular to the image.


Features:

  • Premium optical materials
  • Short focal length and full frame corrected focal plane
  • Excellent field flatness
  • Precision linear power focuser is standard
  • Metallic high-transmission lens coatings
  • Light-baffled optical systems
  • Telescope tube attachment hardware
  • Zero detectable Colour Fringing even on Bright Objects
  • Knife-edge Baffled Optical System

Optical Design

Apochromatic Refractor

Diameter / Aperture

80 mm

Focal length

400 mm

Highest Practical Power

120x

  • Finderscope
8x50 Right angel Erect image

F/Ratio

F/5

  • Diagonal
2" 90 deg. Dielectric Diagonal with 1.25" adapter
Eye Piece LET 2"-28 mm

Focuser Diameter

2.7" Linear Power Focuser

Tube Weight 3.97Kg
Tube Dimensions 8.3cmx45cm

Shipping Weight

20Kg

Shipping Dimensions

69x51x39cm3
