SynScan GPS

SynScan GPS

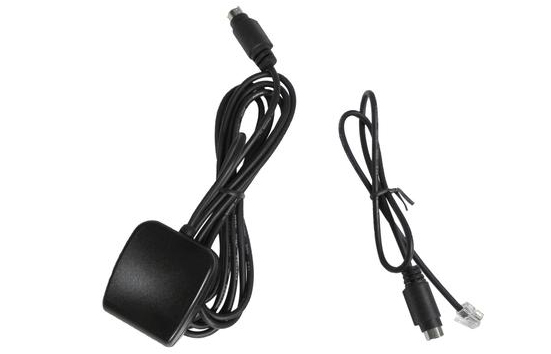

    The SynScan GPS is a compact all-in-one GPS module solution to connect to SynScan computer telescope GOTO system. It provides accurate geometrical coordinates and serves as a precise real-time clock for the GOTO system.
    The receiver continuously tracks all satellites in view and provides accurate satellite positioning data. The SynScan GPS is optimized for good performance, low cost, and maximum flexibility.

Features

  • 48-channel GPS receiver
  • -146 dBm acquisition sensitivity
  • -160 dBm tracking sensitivity
  • < 5 second hot start
  • < 40 second cold start
  • 5m CEP accuracy
  • Dedicated for SynScan GOTO system

Receiver Type: 48-channel, L1 C/A code
Accuracy: Position 5m CEP, Velocity 0.1m/sec
Startup Time: < 5sec hot start, < 35sec warm start, < 40sec cold start
Reacquisition: 1sec
Sensitivity: -146dBm acquisition, -160dBm tracking
Update Rate: 1Hz
Dynamics: 4G(39.2m/sec2)
Operational Limits: Altitude < 18,000m or velocity < 515m/sec
Serial Interface: RS-232 level
Protocol: SynScan Position, Velocity & Time II Binary Message.
Input Voltage: 2.7V ~ 6.0V
Current Consumption: < 100mW (3.3V)
Operating Temperature: -40°C ~ +60°C
Humidity: 5% ~ 95%
