AllView Mount

AllView Mount

♦Freedom Find (dual-encoder) on each axis allows manual movement without losing alignment or position infomation

♦Utilize your still camera to create time lapsepanning videos

♦Electronic shutter release to automatically triggercamera exposures in panoramic mode*

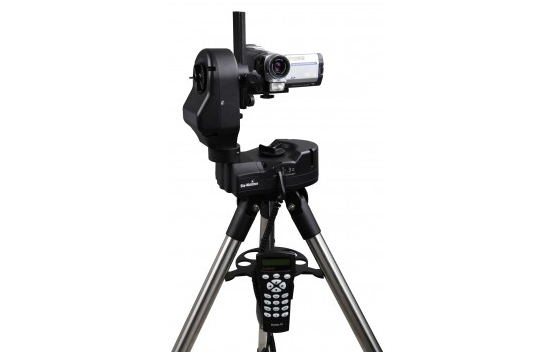

♦Motorized panning head for video cameras

♦AZ Synscan Hand control with database of over 42,900celestial objects

♦Motorized head detaches for use with most prosumertripods using 3/8” thread

♦Camera Cruising: DSLR interface
  Included shutter release cable for Canon Rebel EOS DSLR cameras. Optional cable available for other camera models.



Product Description:

Take amazing PANORAMIC IMAGES or video automatically

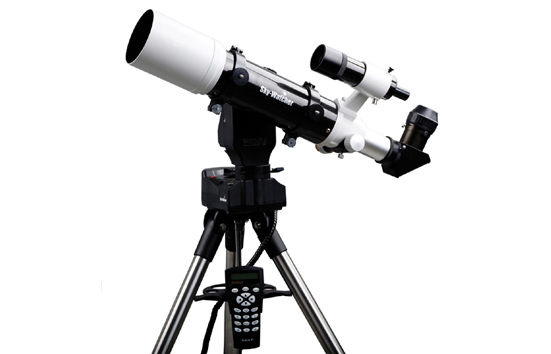

This multi-purpose computerized mount is designed and intended fora wide variety of applications such as panoramic photography, daytimeviewing, videography and astronomical viewing.The AllView is capable of automatically moving to various preprogrammedpositions and controls the camera shutter to take a picture at eachposition automatically, taking the complexity out of producingpanoramic video or photographs. It also supports our latest patented Freedom FInd (dual-enocder) Technoloy.


Freedom Find™ - tracking made easy!

With the patented Freedom Find (dual-encoder) technology which allows the telescope to be moved manually or electronically in either axis without losing its alignment or positional information. After moving to a new object the telescope will automatically begin to track the new object accurately. No re-setup is required in one observing session.

  • Mount TypeMotorized altazimuth with manual release clutch knobs
  • Slow Motion ControlMotorized
  • Motor DriveDC servo Slew Speeds 1000x, 800x, 600x, 400x, 200x, 32x, 16x, 8x, 2x, 1x
  • GoToAll View Hand Controller
  • Shipping Weight10 kg
  • Shipping Carton Dimensions112x36x28 cm3
  • Power Supply8 to 15 V DC 1Amp (tip positive)
  • Payload Capacity9 lbs (4 kg)
  • Tracking ModesDual Axis Tracking
  • Tracking RatesSidereal, Lunar, Solar
