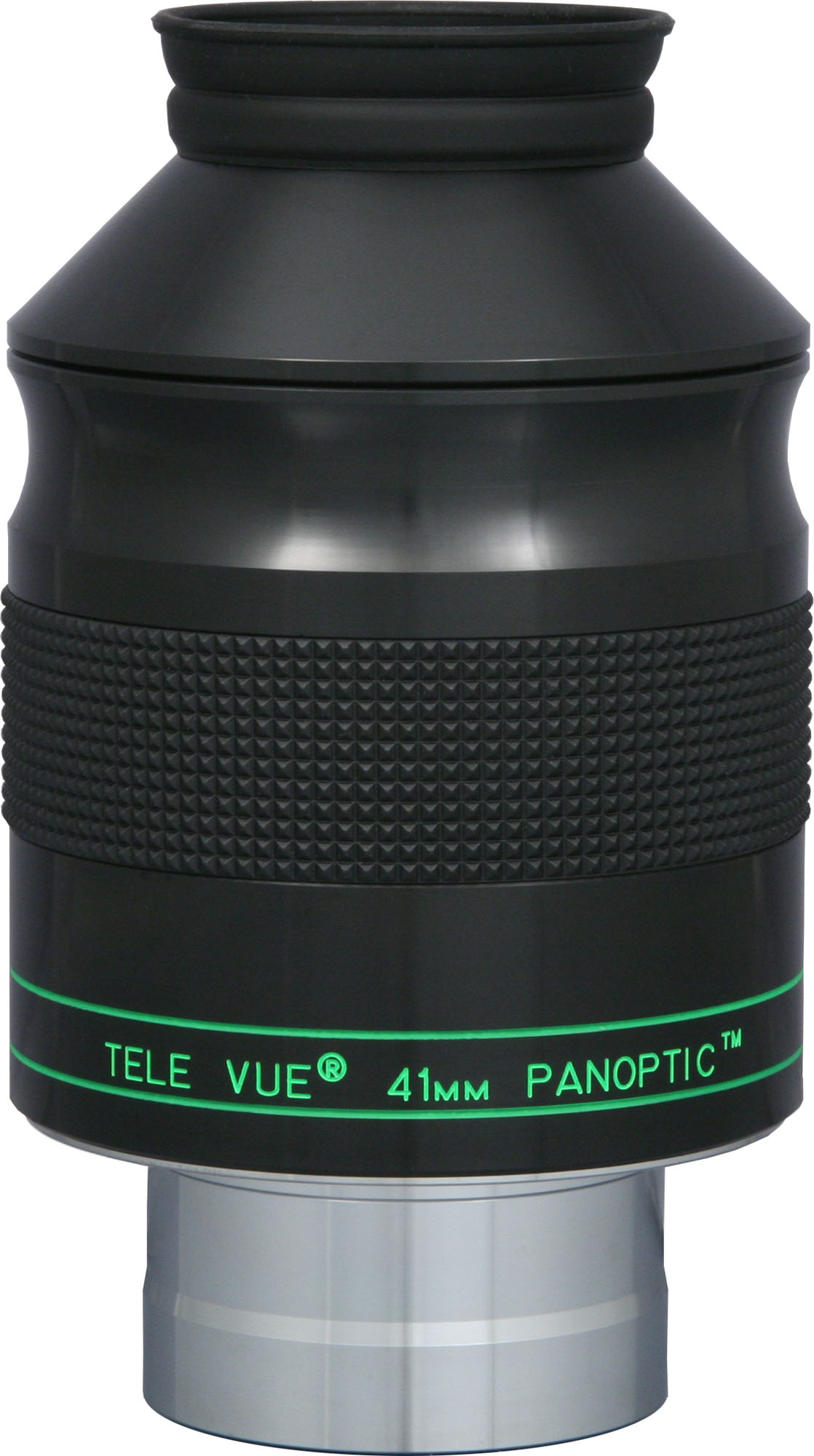

Panoptic 41mm Eyepiece

Panoptic 41mm Eyepiece

FEATURES:

  • multi-coatings
  • blackened lens edges
  • filter threads
  • rubber grip rings
  • cover for the eye guard
  • an undercut in the barrel for extra locking security

DESCRIPTION:

Using my Wide-Field design as a starting point, I looked to bring Nagler-like performance to the 60+° field class with the Panoptic series. The idea of a lens to "interface" between the eyepiece and Barlow struck me as the proper way to keep size, weight and cost to a minimum while improving edge of field performance even further. I later developed this idea into the Powermates.

The 41mm Panoptic eyepiece is a big brother to the 24mm Panoptic (largest 1.25" field). With its 46mm field stop, the 41mm Panoptic delivers the largest 2" field possible. An adjustable and removable screw-type top allows quick, comfortable eye positioning. The scalloped shape gives a positive grip.

  • Model: EPO-41.0
  • Focal Length (mm): 41
  • Barrel Size (in.): 2"
  • Apparent Field of View (deg.): 68
  • Eye Relief (mm): 27
  • Weight: 953 gram
  • Field Stop (mm): 46
