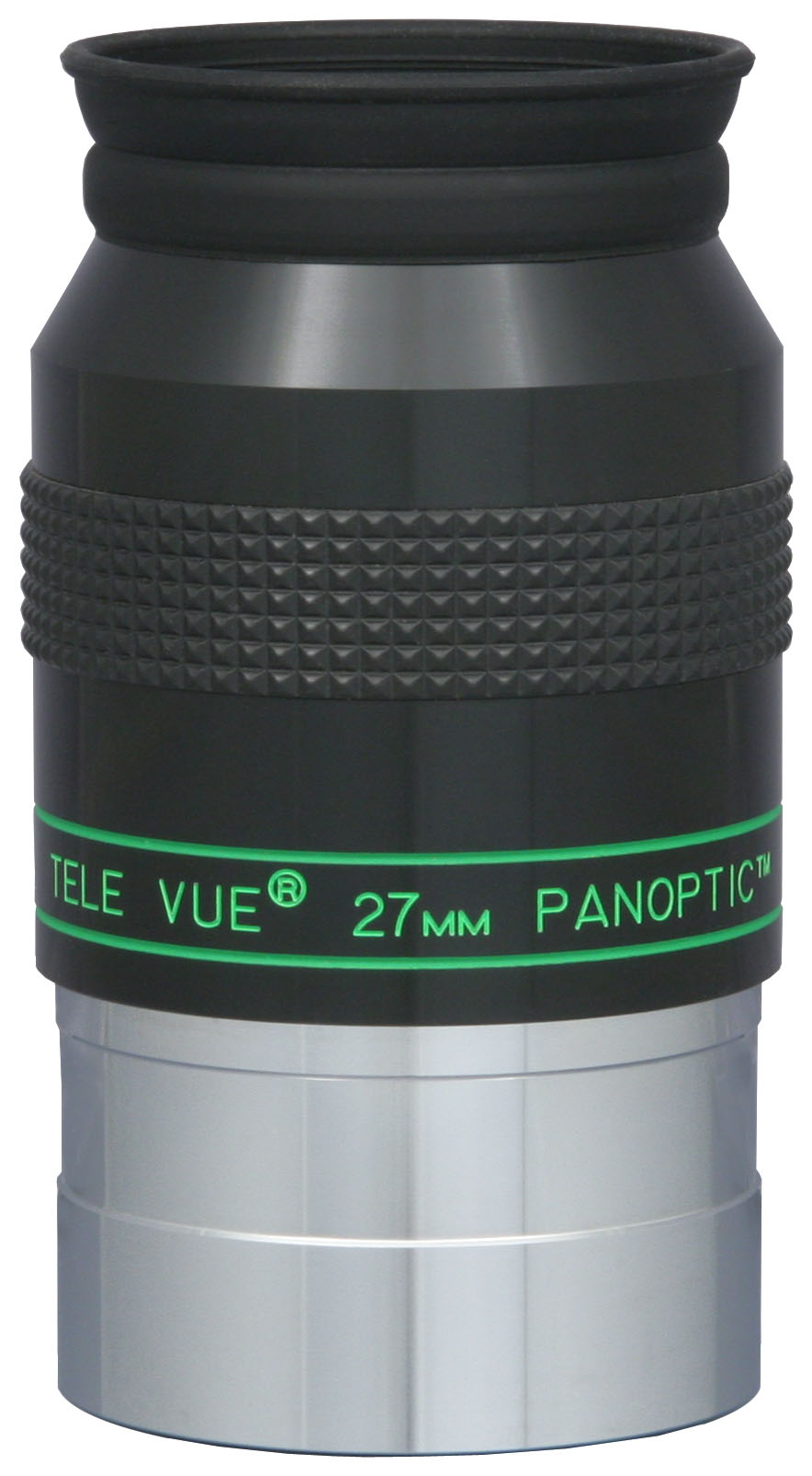

Panoptic 27mm Eyepiece

Panoptic 27mm Eyepiece

FEATURES:

  • multi-coatings
  • blackened lens edges
  • filter threads
  • rubber grip rings
  • cover for the eye guard
  • an undercut in the barrel for extra locking security

DESCRIPTION:

Using my Wide-Field design as a starting point, I looked to bring Nagler-like performance to the 60+° field class with the Panoptic series. The idea of a lens to "interface" between the eyepiece and Barlow struck me as the proper way to keep size, weight and cost to a minimum while improving edge of field performance even further. I later developed this idea into the Powermates.

Housed in a 2" barrel like the 35mm, the 27mm is lighter & smaller. It's perfect for any telescope size, type or speed, where a little more magnification is desired, yet still allows full field viewing with eyeglasses. For example, with the Tele Vue-85, it gives 22x and a true field of 2.9 degrees!

  • Model: EPO-27.0
  • Focal Length (mm): 27
  • Barrel Size (in.): 2"
  • Apparent Field of View (deg.): 68
  • Eye Relief (mm): 24
  • Weight: 467 gram
  • Field Stop (mm): 30.5
