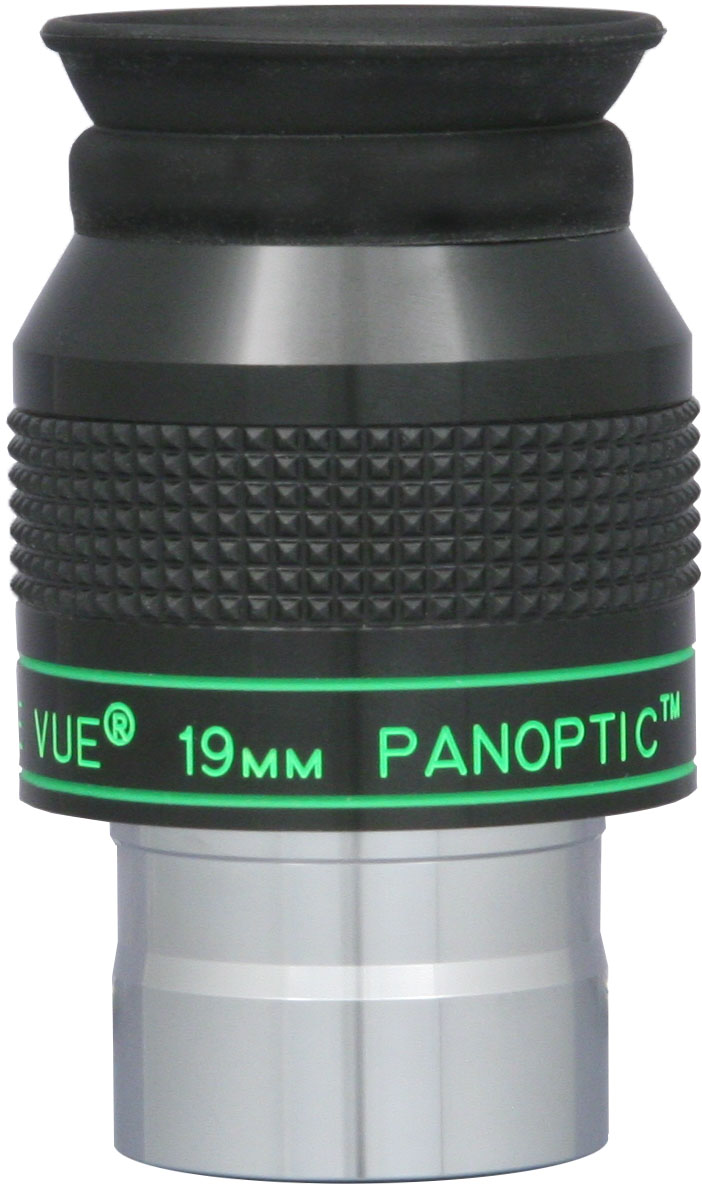

Panoptic 19mm Eyepiece

Panoptic 19mm Eyepiece

FEATURES:

  • multi-coatings
  • blackened lens edges
  • filter threads
  • rubber grip rings
  • cover for the eye guard
  • an undercut in the barrel for extra locking security

DESCRIPTION:

Using my Wide-Field design as a starting point, I looked to bring Nagler-like performance to the 60+° field class with the Panoptic series. The idea of a lens to "interface" between the eyepiece and Barlow struck me as the proper way to keep size, weight and cost to a minimum while improving edge of field performance even further. I later developed this idea into the Powermates.

Size, weight and performance make the 19mm an ideal mid power chioce. Ideal "soul-mate" to Bino Vue. Parfocal with smaller Plössls and Naglers.

  • Model: EPO-19.0
  • Focal Length (mm): 19
  • Barrel Size (in.): 1¼"
  • Apparent Field of View (deg.): 68
  • Eye Relief (mm): 13
  • Weight: 186 gram
  • Field Stop (mm): 21.3
