TeleVue-76 OTA

TeleVue-76 OTA

76mm, f/6.3, APO (Doublet) Refractor. From astronomical, to spotting, to birding, the Tele Vue-76 combines compact size with the APO optical performance of the Tele Vue-85. 5.5° / 200x (Max. Visual Field / Max. Rec. Power)

The expansive 5.5° rich-field drizzles your view with delicate jewel-like stars, while the APO performance of the Nagler designed, fully multi-coated 2-element objective and optional 2" Everbrite diagonal produce natural stellar and planetary color rendition even at the highest useful powers.

Small size and lighter weight permit use of lighter-duty tripods for easy field carrying and transportation. The padded shoulder bag provides protection and room for the scope and six eyepieces.

If your interest’s crossover from astronomical to spotting or birding, and you demand the ultimate in portable performance the Tele Vue-76 is always waiting to deliver.

  • Type: APO (Doublet) Refractor (Elements/Groups: 2/1)
  • Objective (mm): 76
  • Focal Length (mm): 480
  • Focal Ratio (f/#): 6.3
  • Length OTA (inch): 14.5
  • Length with diagonal (inch): 17.4  (with 2-inch diagonal)
  • Weight OTA/Std. Config (kgs): 2.26 /2.26
  • Drawtube/Focuser: 2-inch, Focusmate dual-speed rack/pinion
  • Maximum Visual Field (deg.): 5.5 (with 2-inch 55mm Plossl)
  • Recommended magnification range: 12x-200x
  • Light collection (over human eye): 118
  • Included Accessories: Sliding metal dew shield, Screw-on metal lens cover, Focusmate dual-speed focuser 10:1, Soft carry case

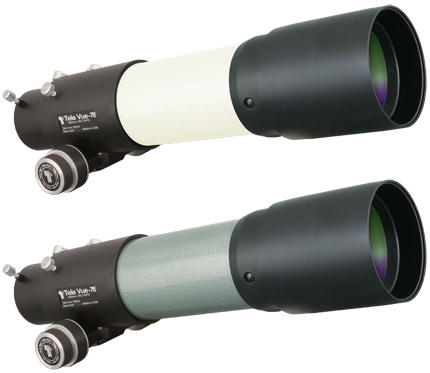

  • Available Colors: Green, Ivory
