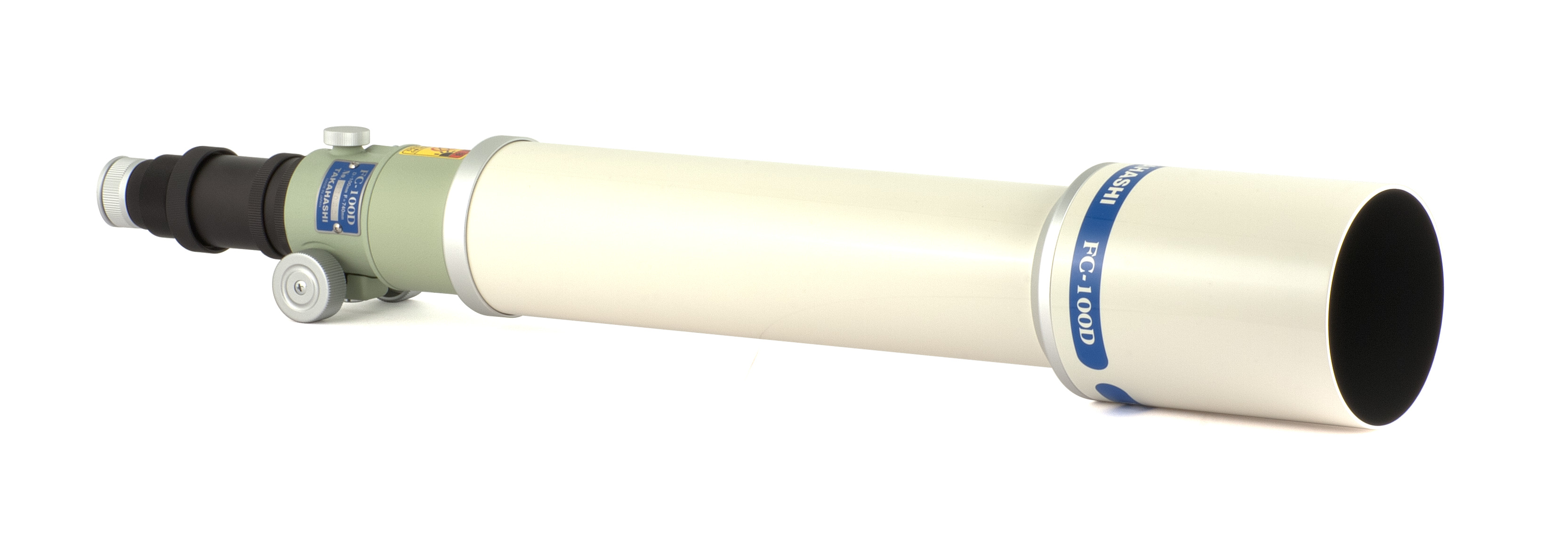

Takahashi FC-100DC OTA (w/fixed dew shield)

Takahashi FC-100DC OTA (w/fixed dew shield)

Like the FS series, the FC series are apochromatic refractors with two-element fluorite lenses.  The FC series have larger apertures and longer focal lengths than the FS series, and provide outstanding performance both for the visual observer and the digital imager.  The FC series has its own dedicated set of reducers and flatteners, and is also able to use some of these accessories from the TOA series. The FC-100DC model features a fixed dew shield and a 2.2 inch rack and pinion focuser.  While a capable imaging instrument, it is designed with the visual observer in mind.

  • Optical design- Fluorite Doublet  Apochromat
  • Aperture- 100mm
  • Focal length- 740mm
  • Focal ratio- F/7.4
  • Resolution- 1.16”
  • Limiting magnitude- 11.8
  • Light grasp- 204x
  • Metal Back distance-161mm
  • Tube length- 815mm (with fixed dew shield)
  • Tube diameter- 95mm
  • Tube Weight- 2.8kg
