Takahashi FOA 60Q OTA

Takahashi FOA 60Q OTA

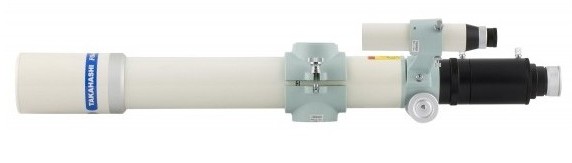

The FOA-60Q is a new compact apochromatic fluorite doublet refractor from Takahashi.  The telescope features a 60 mm aperture and a 530 mm focal length.  It is with extender 1.7xR, which increases the focal length to 901 mm. The spacing of the doublet elements is such that the correction of the spherical aberrations is similar to that found in the much larger TOA series.  This innovative design results in a Strehl ratio in excess of 96% for the base unit and over 99% with the extender.

  • Compact design for relatively long focal length, making it ideal for transport
  • Outstanding visual and photographic performance, providing a 44 mm diameter image circle for full frame imaging
  • Available with extender 1.7xR.
  • Optical design- Fluorite Doublet Ortho Apochromat
  • Aperture- 60mm
  • Focal length- 901mm
  • Focal ratio- F/15
  • Resolution- 1.93”
  • Limiting magnitude- 10.7
  • Light grasp- 73x
  • Finderscope- 6x30
  • Tube diameter- 68mm
