QHY168 C

QHY168 C

APS-C
Sony IMX071 Sensor 16 Megapixels

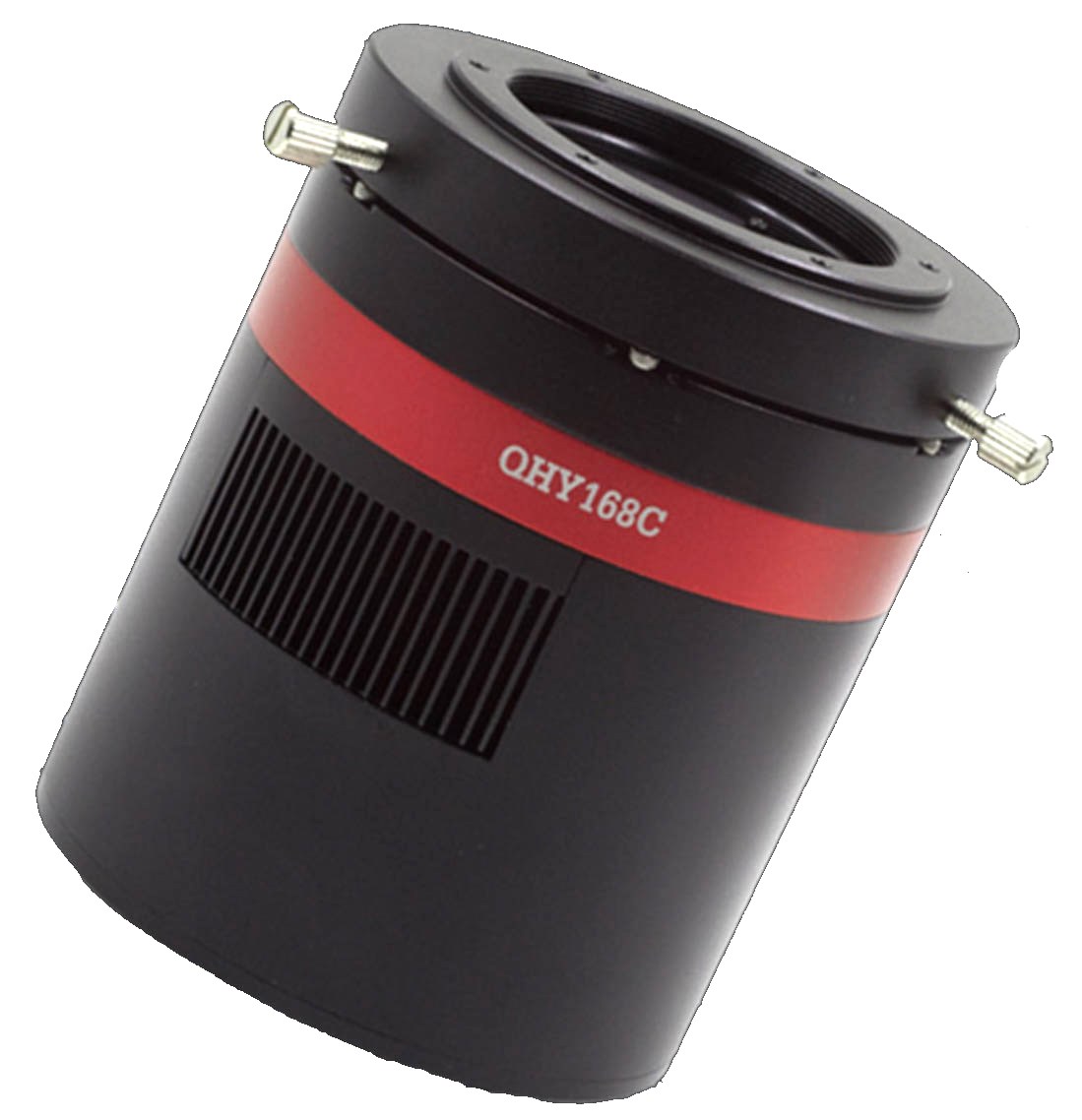

The QHY168C is a popular APS-C format cooled color camera. The SONY Exmor IMX071 sensor has 4.8um pixels and 2.3e- to 3.2e- read noise. This sensor was used in the Nikon D5100 DSLR camera. With read noise this low, it is easier to detect a dim target against of the background noise.

Outputs

True RAW 14-bit

Many cameras claim to output RAW image files, but there is often still some internal processing performed on the image. This can have a negative effect on the image for astronomy such as the "star eater" effect. The QHY168C outputs TRUE RAW data, preserving the original data for maximum compatibility with astronomical imaging processing programs and other scientific imaging applications.

Extremely Low Dark Current
0.0007e/pixel/s Noise Reduction Technology

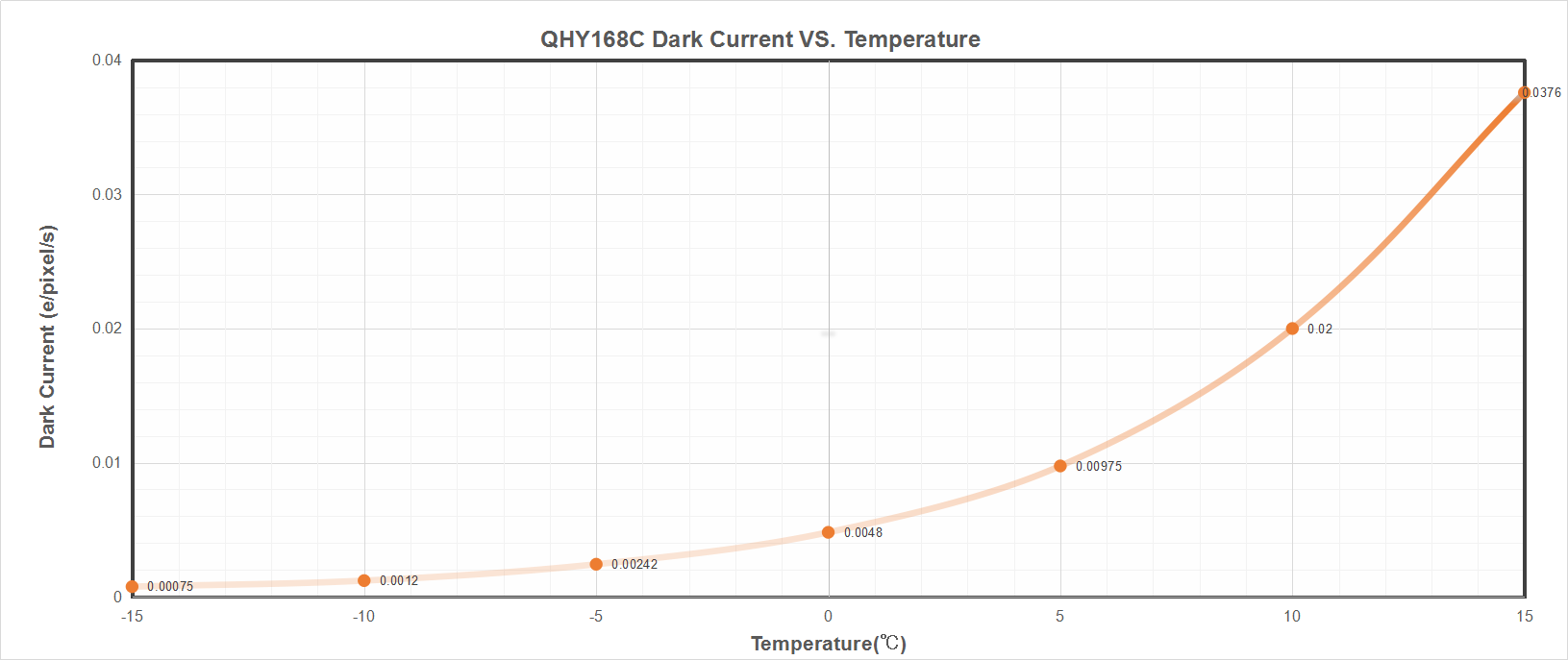

In addition to dual stage TE cooling, QHYCCD implements proprietary technology in hardware to control the dark current noise in the QHY168C. As a result the dark current of this camera is a remarkable 0.0007e-/p/s at -15C.

AR coating

Reduce Halo MultiLayerThe optic window is high quality AR+AR multi-layer coated.. IR blocking is not so that the cameras can be used with maximum sensitivity to H-alpha and near IR when desired, or a simple IR blocking filter(L filter) can be attached for typical RGB imaging with IR cut.

ZERO GLOW
EASY CONFORMABLE

With the QHYCCD anti-amp glow technology. QHY168C get the zero amplifier glow results. Which will make the long time DSO exposure more conformable and easy to process.Glow will cause the noise increasing after calibration in the glow area, Without the amplifier glow, there is less noise appear after the calibration.

Anti-Dew Technology

Based more than 10 years cooled camera design experience. The QHY168C has implemented the fully dew control solutions. The optic window has built-in dew heater and the chamber is protected from internal humidity condensation.

Multiple Setup

QHYCCD has many kinds of the mechanical adapter with flexibility setup to allow the QHY168C can be fit for all kinds of the conditions, including the QHYCCD OAG, 0.5mm-27.5mm flexible back focus adjust spacer, 2inch T ring, the IR filter holder for MPCC connection case, etc. Some of the items is optional pars and need to be ordered. QHYCCD has a combination table for many possible connection cases which can be found on specification page.

128MB DDR Buffer

The QHY168C has 128MB DDRII buffer. Which is over than one frame size (72MB per frame) and idea for buffering the image inside camera. It helps tremendously with slower computers and also USB2.0 case and it can improve the data transfer stability with flowing control.

  • Version: QHY168C
  • CMOS Sensor:  SONY IMX071 APS-C CMOS
  • AR Coating On Sensor: No. Clear Glass
  • Pixel Size: 4.8um*4.8um
  • Effective Pixel Area: 4952*3288
  • Effective Total Pixels: 16 megapixels
  • Effective Image Area: 23.76mm*15.78mm

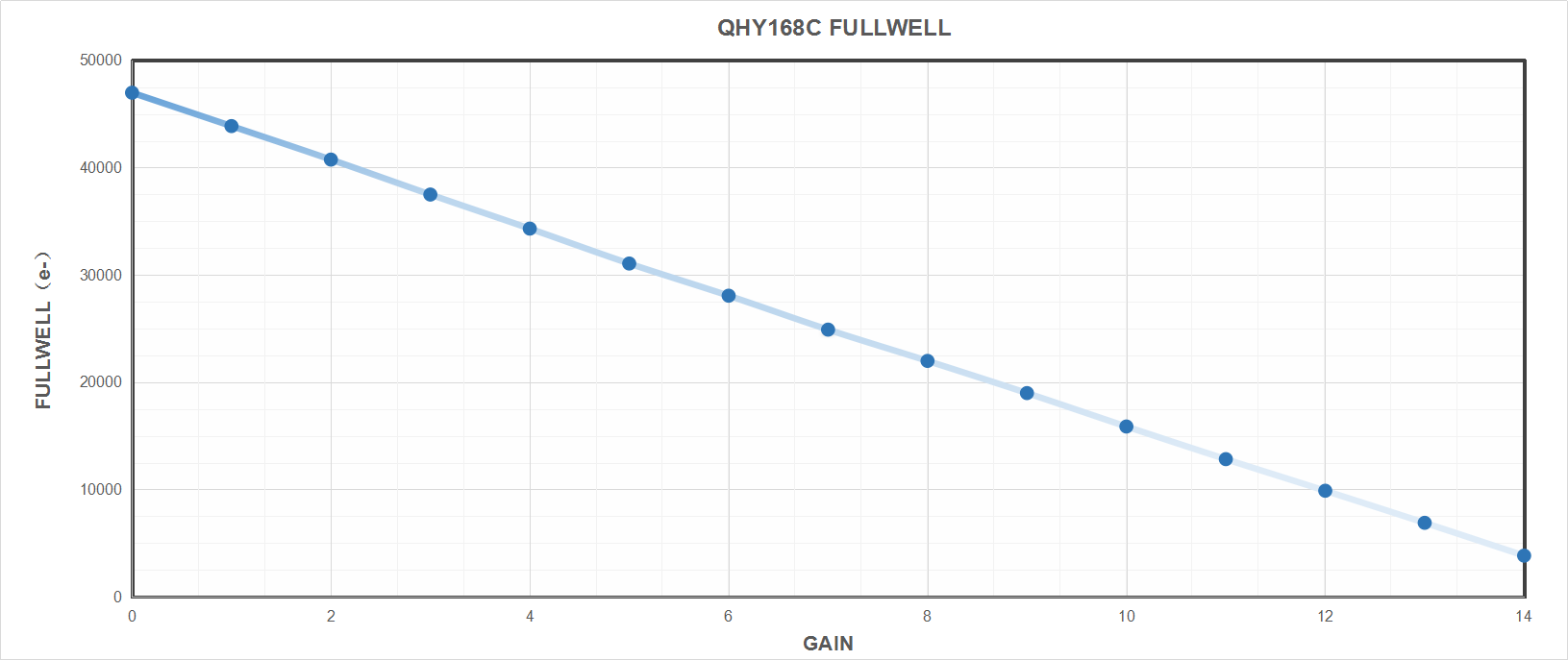

  • Fullwell: 46ke-
  • AD Sample Depth: 14bit (output as 16bit and 8bit)
  • Sensor Size: APS-C Format
  • Full Frame Rate and ROI Frame Rate: 10FPS@Full Resolution

                                               15FPS@4096*2160 4k video

                                                          30FPS@1920*1080 HD

                                                          32FPS@1024 Line

                                                          42FPS@768 Line

                                                          54FPS@600 Line

                                                          130FPS@240 Line

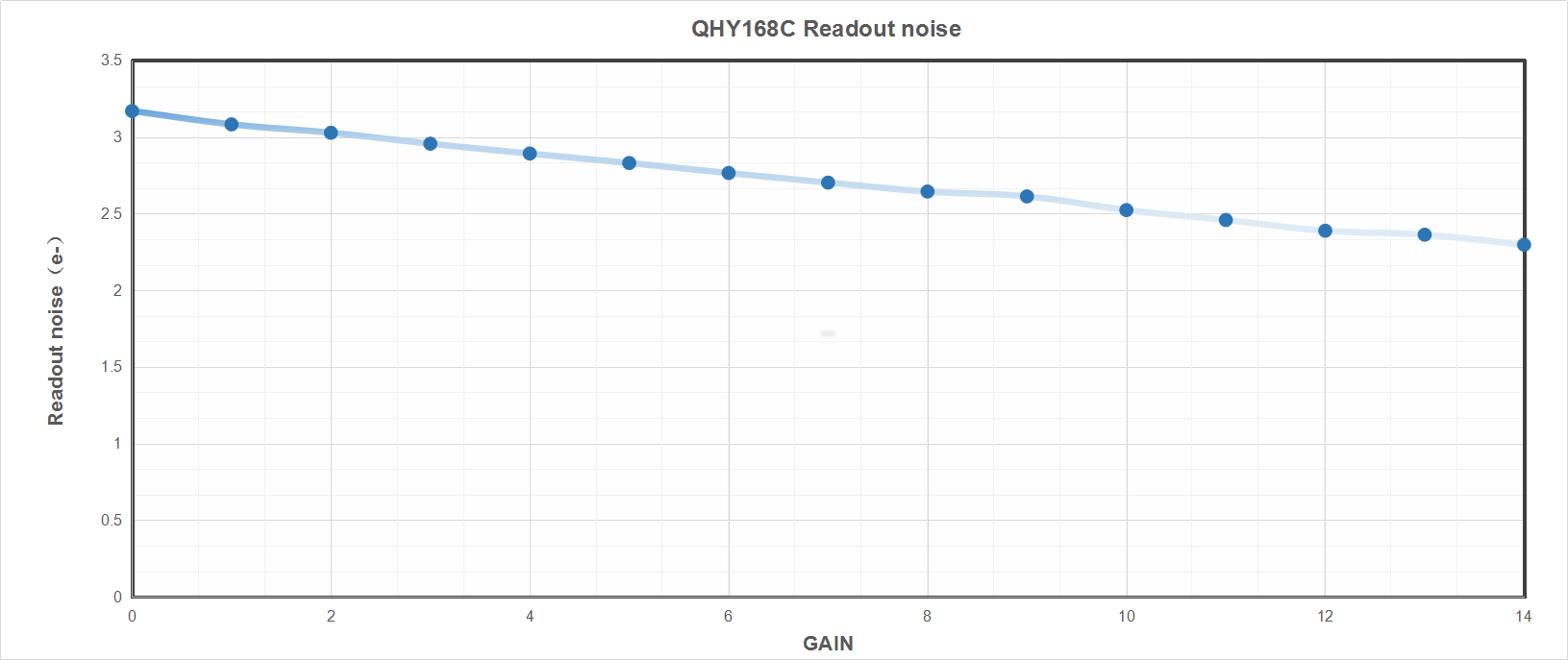

  • Readout Noise: 3.2e-@Lowest Gain  2.3e-@High Analog Gain
  • Exposure Time Range: 30us-3600sec
  • Anti-Glow control: Yes, Zero Glow
  • Shutter Type: Electric Rolling Shutter
  • Computer Interface: USB3.0
  • Built-in Image Buffer: 128MByte DDR2 memory
  • Cooled System: Dual Stage TEC cooling (-35C below ambient)
  • Anti-Dew Heater: Yes
  • Telescope Interface: M54/0.75 female thread on the fast installer/center adjust ring
  • Optic Window Type: AR+AR High Quality Multi-Layer Anti-Reflection Coating (For color camera user need to add a UV/IR filter in the light path)
  • Back Focal Length: 18mm (±0.5)
  • Weight: 700gram
