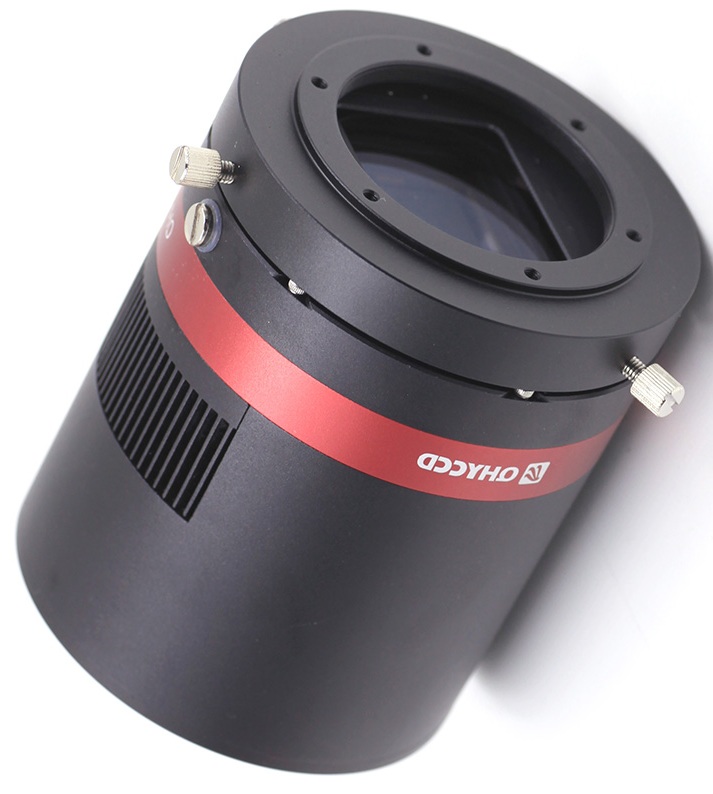

QHY367 C

QHY367 C

Super Performance
36 Megapixels 35mm Format

The QHY367C is the top performing full frame camera in COLDMOS Series. The Sony Exmor IMX367 CMOS sensor is also found in the Nikon D800/810 DSLR cameras. This sensor is implemented in the QHY367C specifically for astronomical use with QHYCCD thermal noise reduction technology. With read noise as low as 2.4e-, full well capacity of 56ke-, and 14-bit A/D, the camera has a dynamic range of more than 14 stops.


True Raw Data

Many cameras claim to output RAW image files, but there is often still some internal processing performed on the image. This can have a negative effect on the image for astronomy such as the "star eater" effect. The QHY367C outputs TRUE RAW data, preserving the original data for maximum compatibility with astronomical imaging processing programs and other scientific imaging applications.

Ultra Low Dark Current
Unique Noise Reduction Technology

In addition to dual stage TE cooling, QHYCCD implements proprietary technology in hardware to control the dark current noise in the QHY367C. As a result the dark current of this camera is a remarkable 0.0015e-/p/s at -15C.

AR Optical Window

MAR Coating Reduces Halos

The optical window has high quality AR+AR multi-layer coatings. In addition the sensor surface is AR coated, all of which significantly reduces halos around bright stars. IR blocking is not present, so that the cameras can be used with maximum sensitivity to H-alpha and near IR when desired, or a simple IR blocking filter (L filter) can be attached for typical RGB imaging with IR cut.

EASY Calibration No Extra Noise

With the QHYCCD anti-amp glow technology, the QHY367C exhibits zero amplifier glow, even in long exposures. This makes long exposures of DSOs possible and easier to process. There are only a few CMOS cameras that can achieve zero amplifier glow results. The QHY367C is one.

Anti-Dew Technology

The QHY367C benefits from more than a decade of cooled camera design experience. QHYCCD has implemented full dew control solutions. The optical window has a built-in dew heater and the CMOS chamber is protected from internal humidity condensation.

Multiple Setups

QHYCCD offers a variety of mechanical adapters for the QHY367C allowing it to fit a broad range of accessories, including the QHYCCD OAG, 0.5mm-27.5mm flexible back focus adjust spacer, 2-inch T-ring, IR filter holder and more. QHYCCD has a combination table which can be found on specification page.

128MB DDR Buffer

The QHY367C has a 128MB DDRII buffer which is greater than one full frame (72MB per frame) and is ideal for buffering the image in the camera. It helps tremendously with slower computers and also USB2.0 connections where it improves the data transfer stability and flow control.

  • Version: QHY367C
  • CMOS Sensor:  SONY IMX094 Full Frame CMOS
  • AR Coating On Sensor: Yes
  • Pixel Size: 4.88um*4.88um
  • Resolution: 7376*4938
  • Effective Pixels: 36 megapixels
  • Effective Image Area: 36mm*24mm
  • Fullwell: 56ke-
  • AD Sample Depth: 14bit (output as 16bit and 8bit)
  • Sensor Size: Full Frame Size
  • Full Frame Rate and ROI Frame Rate: Full Resolution 3.2FPS@14BIT

            2160lines (eg. 7400*2160,4096*2160) 7FPS

1080lines (eg. 7400*2160,1920*2160) 14FPS

768lines (eg. 7400*768,1024*768) 19FPS

480lines (eg.7400*480,640*480) 30FPS

320lines (eg.7400*240,320*240) 40FPS

100lines (eg.7400*100,240*100) 83FPS

  • Readout Noise: 3.2e-@Low gain. 2.4e-@unity gain
  • Maxium Dynamic Range: >17000:1  More than 14 STOPs

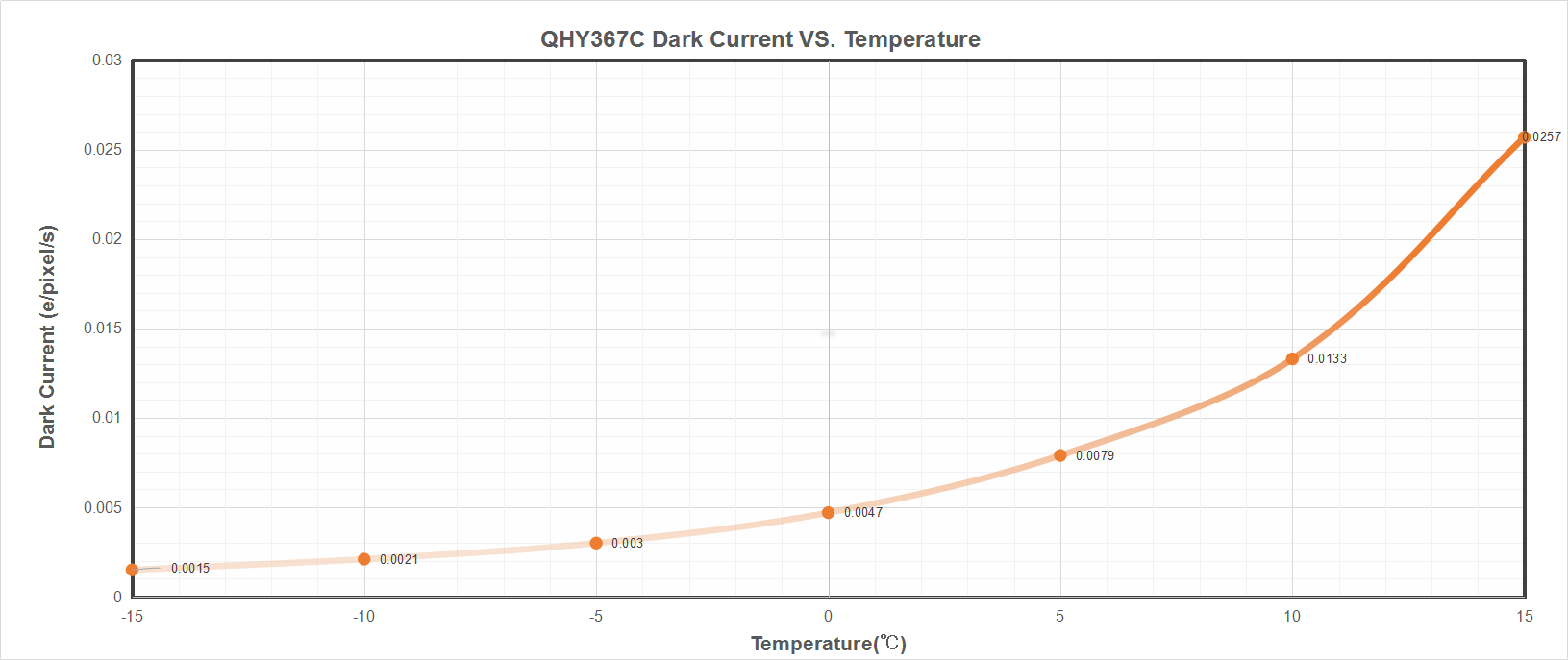

  • Dark Current: 0.0015e/pixel/sec @ -15C
  • Exposure Time Range: 100us-3600sec
  • Anti-Glow Control: Yes, Zero Glow
  • Shutter Type: Electric Rolling Shutter
  • Computer Interface: USB3.0
  • Built-in Image Buffer: 128MByte DDR2 memory
  • Cooling System: Dual Stage TEC cooler(-35C below ambient)
  • Anti-Dew Heater: Yes
  • Silicon Gel Socket: Yes
  • Telescope Interface: M54/0.75 Female Thread on the fast installer/center adjust ring
  • Optic Window Type: AR+AR High Quality Multi-Layer Anti-Reflection Coating (For color camera user need to add a UV/IR filter in the light path)
  • Power Consumption: ~ 30 Watts @ 100% TEC. 13 Watts @ 50%TEC
  • Weight: 788gram
