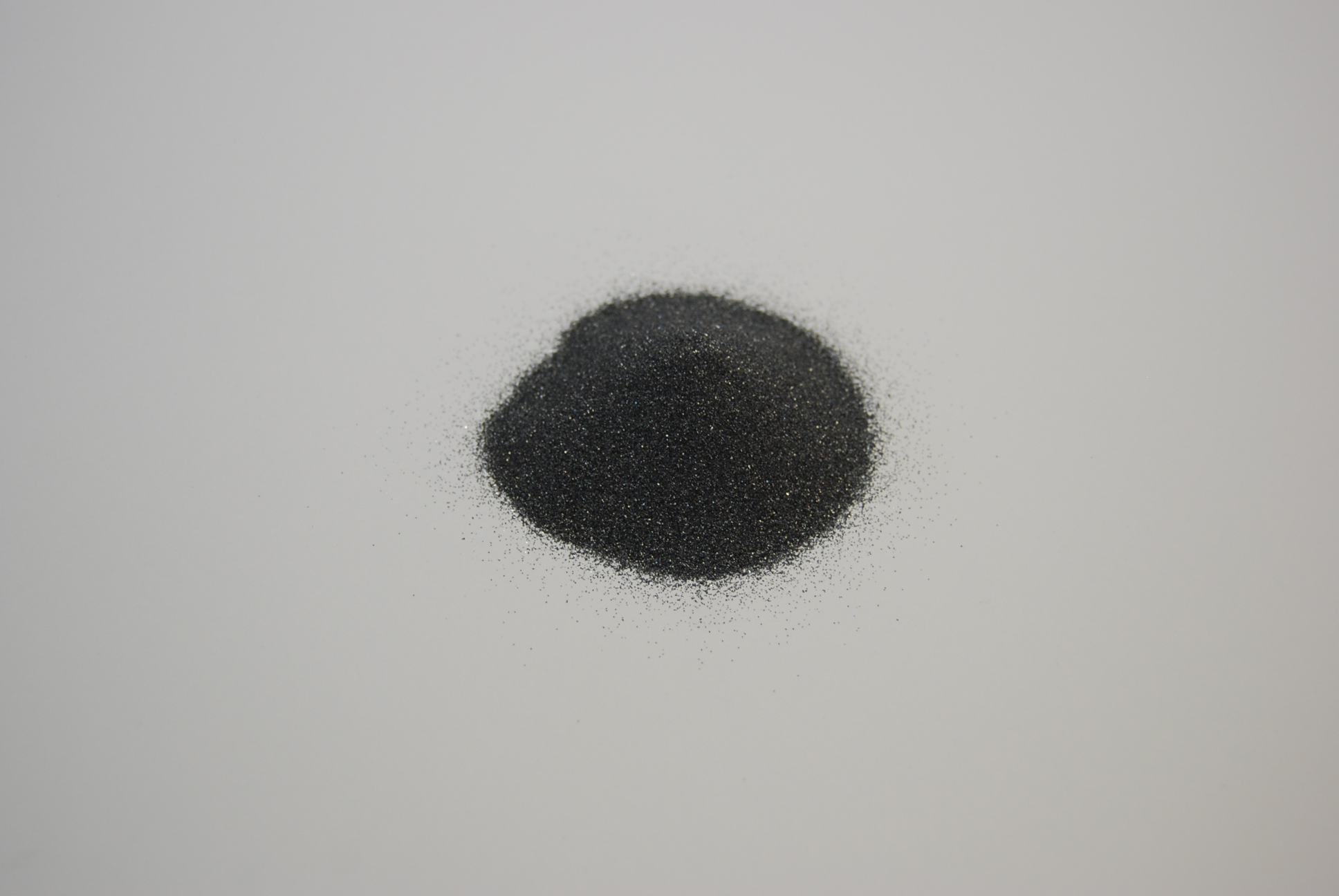

Silicon Carbide 32 micron (320 grit)

Silicon Carbide 32 micron (320 grit)

Silicon Carbide is a hard, sharp, angular material primarily used for rough grinding. Under pressure, it fractures into smaller angular particles, and hence is an aggressive abrasive that removes a lot of glass quickly. Silicon carbide is a synthetic abrasive which approaches the diamond in hardness. It is made by mixing finely ground petroleum coke with pure glass sand. The mixture is loaded into a crucible and heated by electric arc to temperatures in excess of 2000°C. The intense heat of the arc causes the carbon in the coke and the silicon in the sand to fuse into silicon carbide. By varying the speed of the heating and cooling cycle the final crystal size is determined. A long, slow cooling cycle allows a few crystals to grow to a very large size while quick cooling forms numerous small crystals. The cooled mass is then broken up and rough graded by screening. The individual crystals are treated by impact, crushing or air blasting to remove brittle edges. Finally, it is graded by screening, water sedimentation, hydraulic flotation or air classification, with the latter used for the very fine grades. Because of its extreme hardness, silicon carbide is ideal for grinding Pyrex, which is harder than ordinary glass, or very deep curve generation used for refractor, Maksutov, or richest field objectives.

Application:

  • Abrasives
  • Sintered Parts
  • Hot-pressed Parts
  • Reaction Bonded Parts
  • Metal Matrix Composites
  • Wire-saw
  • Body Armor
  • Vehicle Armor
  • Heat Transfer / Thermal Management
  • High Temp Sensors
  • Ceramic Wear Parts
  • Refractory, Grinding
  • Milling
  • Lapping

Silicon Carbide Properties

Mechanical

SI/Metric (Imperial)

SI/Metric

(Imperial)

Density

gm/cc (lb/ft3)

3.1

(193.5)

Porosity

% (%)

0

(0)

Color

black

Flexural Strength

MPa (lb/in2x103)

550

(80)

Elastic Modulus

GPa (lb/in2x106)

410

(59.5)

Shear Modulus

GPa (lb/in2x106)

Bulk Modulus

GPa (lb/in2x106)

Poisson’s Ratio

0.14

(0.14)

Compressive Strength

MPa (lb/in2x103)

3900

(566)

Hardness

Kg/mm2

2800

Fracture Toughness KIC

MPa•m1/2

4.6

Maximum Use Temperature
(no load)

°C (°F)

1650

(3000)

Thermal



Thermal Conductivity

W/m•°K (BTU•in/ft2•hr•°F)

120

(830)

Coefficient of Thermal Expansion

10–6/°C (10–6/°F)

4.0

(2.2)

Specific Heat

J/Kg•°K (Btu/lb•°F)

750

(0.18)

Electrical



Dielectric Strength

ac-kv/mm (volts/mil)

semiconductor

Dielectric Constant

Dissipation Factor

Loss Tangent

Volume Resistivity

ohm•cm

102–106

dopant dependent



Typical Chemical Analysis

Composition

Black SiC

SiC (Min %)

97.50

Si+SiO2 (Max %)

1.50

Fe2O3 (Max %)

0.30

Al2O3 (Max %)

0.50

Free C (Max %)

0.40
